Santana 2023
Description

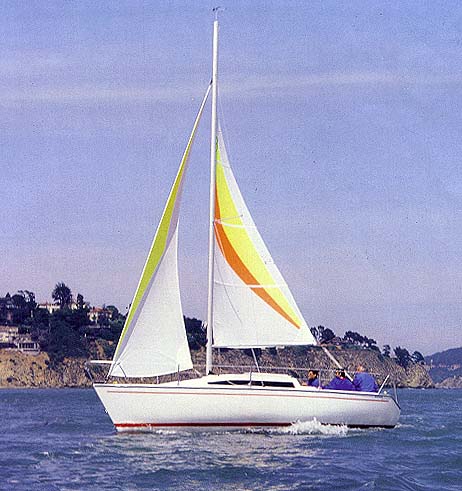

The Santana 2023 is a small sailboat. With her light displacement hull, she offers spirited performance, featuring variable draft for versatility in different sailing conditions. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 23.000 ft |
| LOA | 23.330 ft |
| LWL | 20.620 ft |
| Beam | 8.500 ft |
| Displacement | 2880 lb |
| Max Draft | 5.330 ft |
| Min Draft | 1.170 ft |
The standard boat dimensions
| i | 23.10 ft |
|---|---|
| j | 8.75 ft |
| p | 24.20 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 23.10 ft | 8.75 ft | 24.20 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 23.47 ft - (7154 mm) |
| Foot | * 14.45 ft - (4404 mm) |
| Leech | * 21.8 ft - (6645 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 13.12 ft - (3999 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 153.94 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 24.2 ft - (7376 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 25.65 ft - (7818 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.86 ft - (7882 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 124.93 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 19.76 ft - (6023 mm) |
| Foot | * 11.96 ft - (3645 mm) |
| Leech | * 16.67 ft - (5081 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 10.06 ft - (3066 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 99.4 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 23.47 ft - (7154 mm) |
| Foot | * 14.44 ft - (4401 mm) |
| Leech | * 21.59 ft - (6581 mm) |
| Perc LP | * 165 |
| Area | * 254 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 13.59 ft - (4142 mm) |
| Foot | * 6.83 ft - (2082 mm) |
| Leech | * 10.61 ft - (3234 mm) |
| Perc LP | * 60 |
| Length Perp | * 5.25 |
| Deck Angle | * 19.03 ° |
| Area | * 35.67 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
