SAN JUAN 30 TR
Description
The SAN JUAN 30 TR is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 30.000 ft |

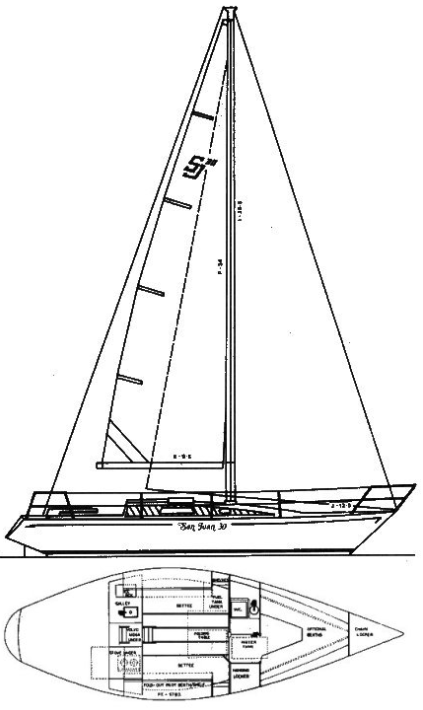

The standard boat dimensions
| i | 39.50 ft |
|---|---|
| j | 12.50 ft |
| p | 34.92 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39.50 ft | 12.50 ft | 34.92 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 39.36 ft - (11997 mm) |
| Foot | * 20.62 ft - (6285 mm) |
| Leech | * 36.21 ft - (11037 mm) |
| Perc LP | * 165 |
| Area | * 609 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 22.79 ft - (6946 mm) |
| Foot | * 9.34 ft - (2847 mm) |
| Leech | * 18.79 ft - (5727 mm) |
| Perc LP | * 60 |
| Length Perp | * 7.5 |
| Deck Angle | * 18.99 ° |
| Area | * 85.49 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.36 ft - (11997 mm) |
| Foot | * 20.16 ft - (6145 mm) |
| Leech | * 37.05 ft - (11293 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.75 ft - (5715 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 369.01 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 39.36 ft - (11997 mm) |
| MidGirth | * 22.5 ft - (6858 mm) |
| Foot | * 22.5 ft - (6858 mm) |
| Perc LP | * 180 |
| Area | * 753 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34.92 ft - (10644 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 35.67 ft - (10872 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 35.87 ft - (10933 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 171.44 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.14 ft - (10101 mm) |
| Foot | * 16.53 ft - (5038 mm) |
| Leech | * 28.83 ft - (8787 mm) |
| Percentage LP | * 115.04 % |
| Length Perpendicular | * 14.38 ft - (4383 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 238.27 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
