SAN JUAN 26
Description

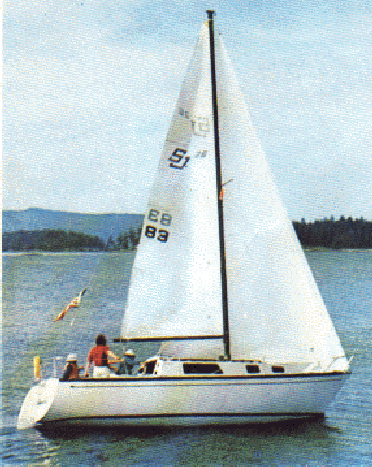

The SAN JUAN 26 is a compact cruiser. She strikes a balance between performance and comfort, featuring variable draft for versatility in different sailing conditions. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 26.000 ft |
| LOA | 25.110 ft |
| LWL | 21.670 ft |
| Beam | 8.000 ft |
| Displacement | 4400 lb |
| Max Draft | 5.000 ft |
| Min Draft | 2.250 ft |
The standard boat dimensions
| i | 30 ft |
|---|---|
| j | 10.60 ft |
| p | 26 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30 ft | 10.60 ft | 26 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25.45 ft - (7757 mm) |
| Foot | * 14.29 ft - (4356 mm) |
| Leech | * 21.73 ft - (6623 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.19 ft - (3716 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 155.1 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 30.23 ft - (9214 mm) |
| Foot | * 17.33 ft - (5282 mm) |
| Leech | * 28.24 ft - (8608 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15.9 ft - (4846 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 240.34 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 9.9 ft - (3018 mm) |
| Foot | * 9.1 ft - (2774 mm) |
| Leech | * 8.25 ft - (2515 mm) |
| Length Perp | * 8.25 |
| Tack Angle | * -25 ° |
| Area | * 35 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 28.75 ft - (8763 mm) |
| Foot | 17.25 ft - (5258 mm) |
| Leech | 27.25 ft - (8306 mm) |
| Percentage LP | * 150.19 % |
| Length Perpendicular | * 15.92 ft - (4852 mm) |
| Deck Angle | * 3.16 ° |
| Area | * 228.89 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 28.42 ft - (8662 mm) |
| Foot | 18.42 ft - (5614 mm) |
| Leech | 27.25 ft - (8306 mm) |
| Percentage LP | * 160.28 % |
| Length Perpendicular | * 16.99 ft - (5179 mm) |
| Deck Angle | * 3.26 ° |
| Area | * 241.43 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26 ft - (7925 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 27.04 ft - (8242 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.22 ft - (8297 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 120.74 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
