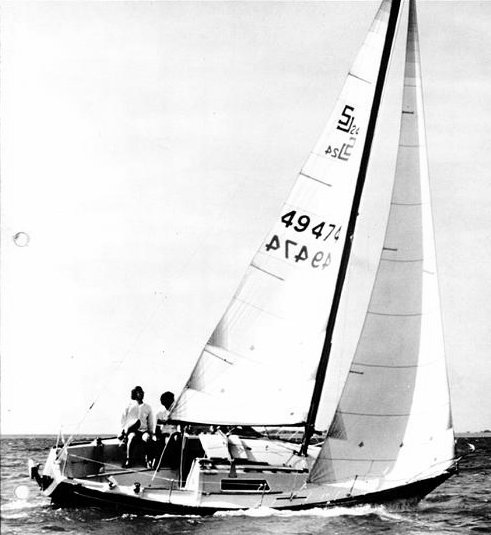

SAN JUAN 24
Description
3450 lbs. Disp. 1600 lbs. Ballast 19' LWL 8' Beam 4' Draft
Construction Details
| Designer | Bruce Kirby |
|---|---|
| Length | 24.200 ft |
| LOA | 24.000 ft |
| LWL | 19.500 ft |
| Beam | 8.000 ft |
| Displacement | 3200 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 30 ft |
|---|---|
| j | 9.50 ft |
| p | 26 ft |
| e | 8 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30 ft | 9.50 ft | 26 ft | 8 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | DRIFTER |
|---|---|
| Luff | * 29.89 ft - (9110 mm) |
| Foot | * 15.93 ft - (4855 mm) |
| Leech | * 26.86 ft - (8187 mm) |
| Perc LP | * 150 |
| Length Perp | * 14.25 |
| Deck Angle | * 8.98 ° |
| Area | * 212.96 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 17.31 ft - (5276 mm) |
| Foot | * 7.1 ft - (2164 mm) |
| Leech | * 14.27 ft - (4349 mm) |
| Perc LP | * 60 |
| Length Perp | * 5.7 |
| Deck Angle | * 18.99 ° |
| Area | * 49.36 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 9.33 ft - (2844 mm) |
| Foot | * 8.58 ft - (2615 mm) |
| Leech | * 7.78 ft - (2371 mm) |
| Length Perp | * 7.78 |
| Tack Angle | * -25 ° |
| Area | * 31 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 29.89 |
| MidGirth | * 17.1 ft - (5212 mm) |
| Foot | * 17.1 ft - (5212 mm) |
| Perc LP | * 180 |
| Area | * 434 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.89 ft - (9110 mm) |
| Foot | * 15.32 ft - (4670 mm) |
| Leech | * 28.14 ft - (8577 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.25 ft - (4343 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 212.97 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25.17 ft - (7672 mm) |
| Foot | * 12.56 ft - (3828 mm) |
| Leech | * 21.88 ft - (6669 mm) |
| Percentage LP | * 114.95 % |
| Length Perpendicular | * 10.92 ft - (3328 mm) |
| Deck Angle | * 12.05 ° |
| Area | * 137.4 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26 ft - (7925 mm) |
| Foot | * 8 ft - (2438 mm) |
| Leech-AftHdBd | * 26.77 ft - (8159 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 26.93 ft - (8208 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 107.2 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29.83 ft - (9092 mm) |
| Foot | 12.42 ft - (3786 mm) |
| Leech | 27.5 ft - (8382 mm) |
| Percentage LP | * 120.42 % |
| Length Perpendicular | * 11.44 ft - (3487 mm) |
| Deck Angle | * 5.29 ° |
| Area | * 170.7 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21.83 ft - (6654 mm) |
| Foot | 8.83 ft - (2691 mm) |
| Leech | 19.67 ft - (5995 mm) |
| Percentage LP | * 83.68 % |
| Length Perpendicular | * 7.95 ft - (2423 mm) |
| Deck Angle | * 8.2 ° |
| Area | * 86.79 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 17.5 ft - (5334 mm) |
| Leech | 28 ft - (8534 mm) |
| Perc LP | * 165 |
| Area | * 394 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 29.89 ft - (9110 mm) |
| Foot | * 15.68 ft - (4779 mm) |
| Leech | * 27.5 ft - (8382 mm) |
| Perc LP | * 165 |
| Area | * 352 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29.5 ft - (8992 mm) |
| Foot | 13.25 ft - (4039 mm) |
| Leech | 27.67 ft - (8434 mm) |
| Percentage LP | * 130.21 % |
| Length Perpendicular | * 12.37 ft - (3770 mm) |
| Deck Angle | * 3.43 ° |
| Area | * 182.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29.92 ft - (9120 mm) |
| Foot | 15.67 ft - (4776 mm) |
| Leech | 28.42 ft - (8662 mm) |
| Percentage LP | * 154.21 % |
| Length Perpendicular | * 14.65 ft - (4465 mm) |
| Deck Angle | * 3.23 ° |
| Area | * 219.14 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 29 ft - (8839 mm) |
| Foot | 10.75 ft - (3277 mm) |
| Leech | 26.83 ft - (8178 mm) |
| Percentage LP | * 104.74 % |
| Length Perpendicular | * 9.95 ft - (3033 mm) |
| Deck Angle | * 4.74 ° |
| Area | * 144.2 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 29.89 ft - (9110 mm) |
| Foot | * 15.93 ft - (4855 mm) |
| Leech | * 26.86 ft - (8187 mm) |
| Perc LP | * 150 |
| Length Perp | * 14.25 |
| Deck Angle | * 8.98 ° |
| Area | * 212.96 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29.33 ft - (8940 mm) |
| Foot | 15.67 ft - (4776 mm) |
| Leech | 27 ft - (8230 mm) |
| Percentage LP | * 150.42 % |
| Length Perpendicular | * 14.29 ft - (4356 mm) |
| Deck Angle | * 6.63 ° |
| Area | * 209.61 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
