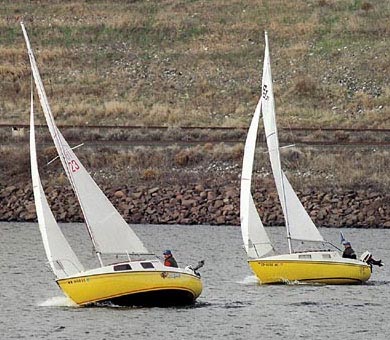

San Juan 23-2
Description
The San Juan 23-2 is a small sailboat designed by Bruce Kirby. With her light displacement hull, she offers spirited performance, featuring variable draft for versatility in different sailing conditions. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Bruce Kirby |
|---|---|
| Length | 23.000 ft |
| LOA | 20.500 ft |
| LWL | 17.000 ft |
| Beam | 7.000 ft |
| Displacement | 1250 lb |
| Max Draft | 4.000 ft |
| Min Draft | 0.700 ft |
The standard boat dimensions
| i | 30 ft |
|---|---|
| j | 9.50 ft |
| p | 26 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30 ft | 9.50 ft | 26 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 28.75 ft - (8763 mm) |
| Foot | 13.33 ft - (4063 mm) |
| Leech | 26.75 ft - (8153 mm) |
| Percentage LP | * 130 % |
| Length Perpendicular | * 12.35 ft - (3764 mm) |
| Deck Angle | * 4.55 ° |
| Area | * 177.51 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26 ft - (7925 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 27.16 ft - (8278 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.37 ft - (8342 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 127.67 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25.17 ft - (7672 mm) |
| Foot | * 12.56 ft - (3828 mm) |
| Leech | * 21.88 ft - (6669 mm) |
| Percentage LP | * 114.95 % |
| Length Perpendicular | * 10.92 ft - (3328 mm) |
| Deck Angle | * 12.05 ° |
| Area | * 137.4 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.89 ft - (9110 mm) |
| Foot | * 15.32 ft - (4670 mm) |
| Leech | * 28.14 ft - (8577 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.25 ft - (4343 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 212.97 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 29.89 ft - (9110 mm) |
| Foot | * 15.68 ft - (4779 mm) |
| Leech | * 27.5 ft - (8382 mm) |
| Perc LP | * 165 |
| Area | * 352 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
