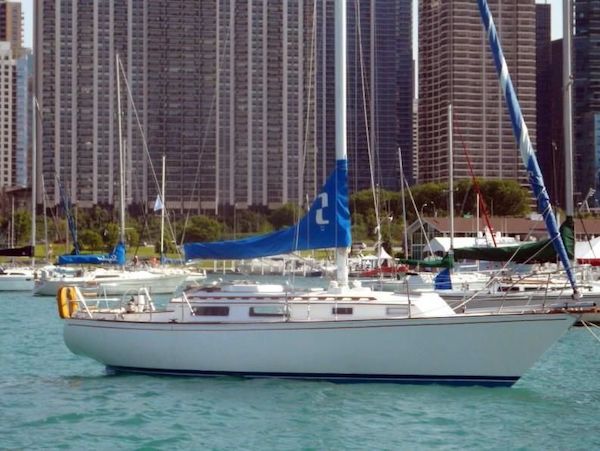

Sabre 42
Description
The SABRE 42 is a mid-sized cruiser designed by Roger Hewson. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Roger Hewson |
|---|---|
| Length | 42.000 ft |
| LOA | 34.180 ft |
| LWL | 26.250 ft |
| Beam | 10.500 ft |
| Displacement | 11400 lb |
| Max Draft | 5.500 ft |
The standard boat dimensions
| i | 52.50 ft |
|---|---|
| j | 14.33 ft |
| p | 45.83 ft |
| e | 16.54 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 52.50 ft | 14.33 ft | 45.83 ft | 16.54 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45.83 ft - (13969 mm) |
| Foot | * 16.54 ft - (5041 mm) |
| Leech | * 47.9 ft - (14600 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 48.18 ft - (14685 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 388.74 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 43.54 ft - (13271 mm) |
| Foot | * 18.54 ft - (5651 mm) |
| Leech | * 38.73 ft - (11805 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.48 ft - (5023 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 358.79 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 51.7 ft - (15758 mm) |
| Foot | * 22.77 ft - (6940 mm) |
| Leech | * 49.15 ft - (14981 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 21.5 ft - (6553 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 555.75 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 51.7 ft - (15758 mm) |
| Foot | * 23.58 ft - (7187 mm) |
| Leech | * 47.2 ft - (14387 mm) |
| Perc LP | * 150.03 % |
| Length Perp | * 21.5 ft - (6553 mm) |
| Deck Angle | * 8.97 ° |
| Area | * 555.8 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 25.75 ft - (7849 mm) |
| Leech | 49 ft - (14935 mm) |
| Perc LP | * 165 % |
| Area | * 1004 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 51.7 ft - (15758 mm) |
| MidGirth | * 25.79 ft - (7861 mm) |
| Foot | * 25.79 ft - (7861 mm) |
| Perc LP | * 180 % |
| Area | * 1133 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 29.93 ft - (9123 mm) |
| Foot | * 10.41 ft - (3173 mm) |
| Leech | * 25.55 ft - (7788 mm) |
| Perc LP | * 60.01 % |
| Length Perp | * 8.6 ft - (2621 mm) |
| Deck Angle | * 19.06 ° |
| Area | * 128.66 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
