Sabre 362
Description

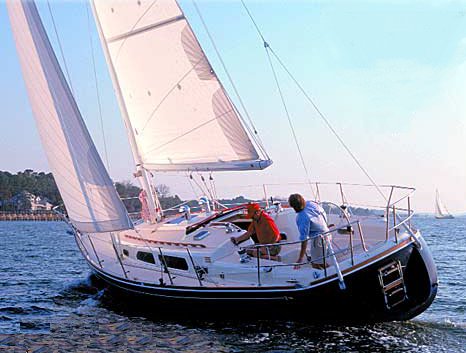

The SABRE 362 is a cruising yacht designed by Jim Taylor. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Jim Taylor |
|---|---|
| Length | 36.000 ft |
| LOA | 36.170 ft |
| LWL | 30.420 ft |
| Beam | 12.000 ft |
| Displacement | 13800 lb |
| Max Draft | 6.500 ft |
The standard boat dimensions
| i | 48.50 ft |
|---|---|
| j | 13.46 ft |
| p | 41.60 ft |
| e | 14.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 48.50 ft | 13.46 ft | 41.60 ft | 14.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 41.6 ft - (12680 mm) |
| Foot | * 14.83 ft - (4520 mm) |
| Leech-AftHdBd | * 43.39 ft - (13225 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 43.67 ft - (13311 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 317.29 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 40.27 ft - (12274 mm) |
| Foot | * 17.44 ft - (5316 mm) |
| Leech | * 35.74 ft - (10894 mm) |
| Percentage LP | * 114.93 % |
| Length Perpendicular | * 15.47 ft - (4715 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 311.49 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 47.82 ft - (14576 mm) |
| Foot | * 21.42 ft - (6529 mm) |
| Leech | * 45.4 ft - (13838 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.19 ft - (6154 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 482.73 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 48 ft - (14630 mm) |
| Foot | 23 ft - (7010 mm) |
| Leech | 45.5 ft - (13868 mm) |
| Perc LP | * 165 % |
| Area | * 828 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 47.82 ft - (14576 mm) |
| MidGirth | * 24.23 ft - (7385 mm) |
| Foot | * 24.23 ft - (7385 mm) |
| Perc LP | * 180 % |
| Area | * 985 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
