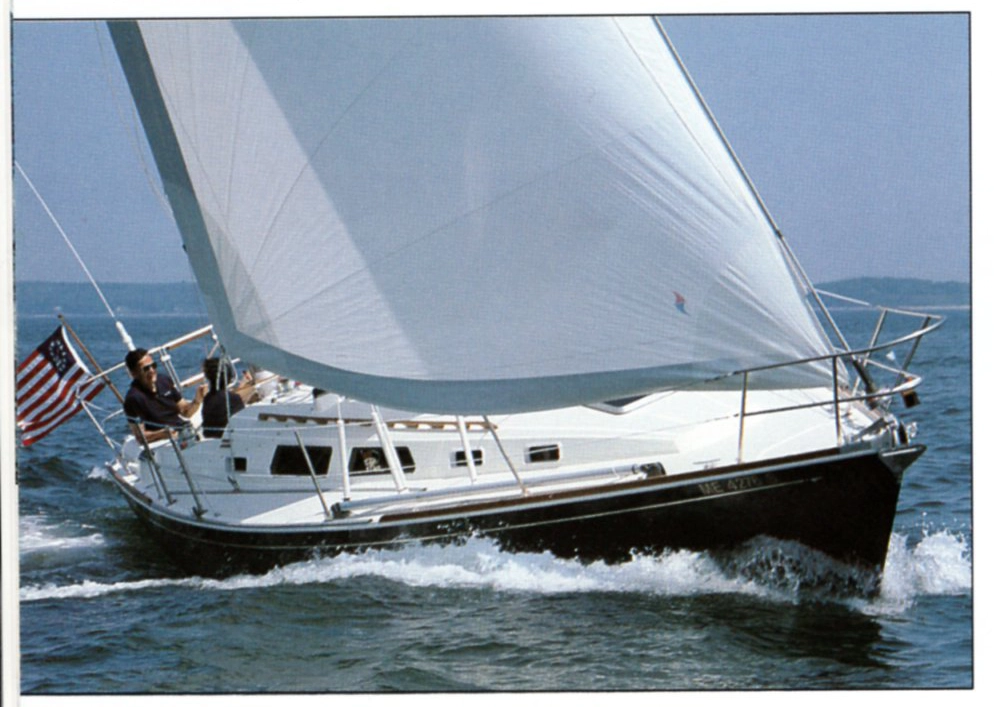

SABRE 34 TARGA A-C
Description
The SABRE 34 TARGA A-C is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 34.000 ft |
The standard boat dimensions
| i | 44.71 ft |
|---|---|
| j | 13.75 ft |
| p | 39.14 ft |
| e | 11.92 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 44.71 ft | 13.75 ft | 39.14 ft | 11.92 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 44.44 ft - (13545 mm) |
| Foot | * 22.69 ft - (6916 mm) |
| Leech | * 40.88 ft - (12460 mm) |
| Perc LP | * 165 |
| Area | * 756 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 25.73 ft - (7843 mm) |
| Foot | * 10.21 ft - (3112 mm) |
| Leech | * 21.37 ft - (6514 mm) |
| Perc LP | * 60 |
| Length Perp | * 8.25 |
| Deck Angle | * 19.01 ° |
| Area | * 106.12 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39.14 ft - (11930 mm) |
| Foot | * 11.92 ft - (3633 mm) |
| Leech-AftHdBd | * 40.27 ft - (12274 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 40.51 ft - (12347 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 240.52 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 44.44 ft - (13545 mm) |
| Foot | * 22.11 ft - (6739 mm) |
| Leech | * 41.92 ft - (12777 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 20.63 ft - (6288 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 458.44 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 37.42 ft - (11406 mm) |
| Foot | * 18.1 ft - (5517 mm) |
| Leech | * 32.71 ft - (9970 mm) |
| Percentage LP | * 115.05 % |
| Length Perpendicular | * 15.82 ft - (4822 mm) |
| Deck Angle | * 11.96 ° |
| Area | * 296.02 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 44.44 ft - (13545 mm) |
| MidGirth | * 24.75 ft - (7544 mm) |
| Foot | * 24.75 ft - (7544 mm) |
| Perc LP | * 180 |
| Area | * 935 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
