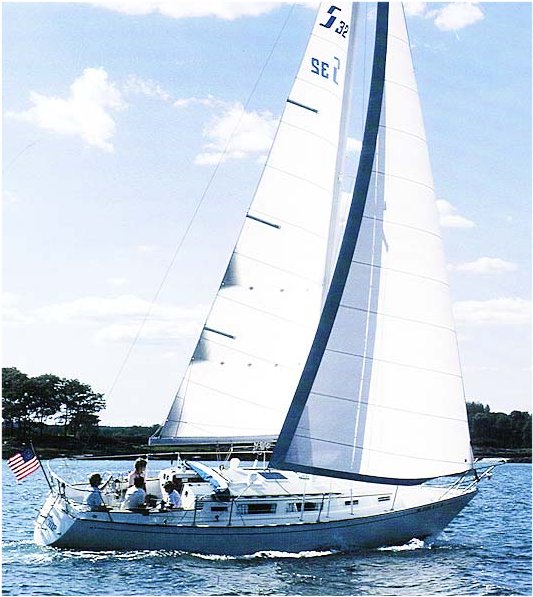

SABRE 32
Description
The SABRE 32 is a compact cruiser. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 32.000 ft |
| LOA | 29.920 ft |
| LWL | 24.000 ft |
| Beam | 10.000 ft |
| Displacement | 8600 lb |
| Max Draft | 5.200 ft |
The standard boat dimensions
| i | 42.10 ft |
|---|---|
| j | 13.35 ft |
| p | 37.01 ft |
| e | 10.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 42.10 ft | 13.35 ft | 37.01 ft | 10.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37.01 ft - (11281 mm) |
| Foot | * 10.83 ft - (3301 mm) |
| Leech-AftHdBd | * 38 ft - (11582 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 38.2 ft - (11643 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 206.33 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.33 ft - (10769 mm) |
| Foot | * 17.65 ft - (5380 mm) |
| Leech | * 30.73 ft - (9367 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 15.35 ft - (4679 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 271.19 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 41.96 ft - (12789 mm) |
| Foot | * 21.53 ft - (6562 mm) |
| Leech | * 39.49 ft - (12037 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 20.02 ft - (6102 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 420.02 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 41.96 ft - (12789 mm) |
| MidGirth | * 24.03 ft - (7324 mm) |
| Foot | * 24.03 ft - (7324 mm) |
| Perc LP | * 180 |
| Area | * 857 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 41.96 ft - (12789 mm) |
| Foot | * 22.03 ft - (6715 mm) |
| Leech | * 38.6 ft - (11765 mm) |
| Perc LP | * 165 |
| Area | * 693 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 41.96 ft - (12789 mm) |
| Foot | * 22.39 ft - (6824 mm) |
| Leech | * 37.69 ft - (11488 mm) |
| Perc LP | * 149.96 |
| Length Perp | * 20.02 |
| Deck Angle | * 9.01 ° |
| Area | * 420.01 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 24.29 ft - (7404 mm) |
| Foot | * 9.98 ft - (3042 mm) |
| Leech | * 20.01 ft - (6099 mm) |
| Perc LP | * 60 |
| Length Perp | * 8.01 |
| Deck Angle | * 19.03 ° |
| Area | * 97.28 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 40 ft - (12192 mm) |
| Foot | 17.25 ft - (5258 mm) |
| Leech | 37.75 ft - (11506 mm) |
| Percentage LP | * 121.42 % |
| Length Perpendicular | * 16.21 ft - (4941 mm) |
| Deck Angle | * 2.43 ° |
| Area | * 324.15 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
