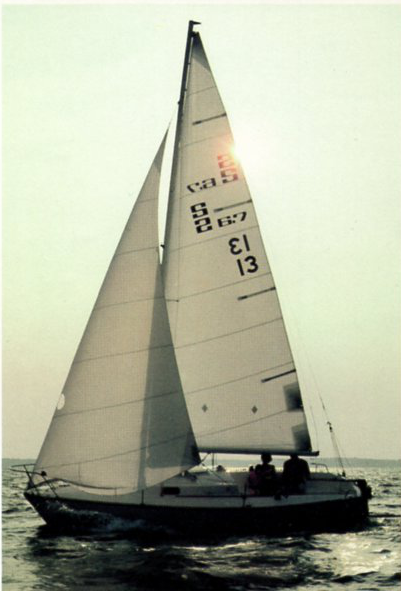

S2 6.7 Grand Slam
Description
2200 lbs. Disp. 18'9" LWL 8' Beam 10" Draft board up 4'3" Draft board down 32'6" mast height above DWL
The standard boat dimensions
| i | 24.50 ft |
|---|---|
| j | 7.50 ft |
| p | 26 ft |
| e | 10.33 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 24.50 ft | 7.50 ft | 26 ft | 10.33 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 10.33 ft - (3149 mm) |
| Leech-AftHdBd | * 27.29 ft - (8318 mm) |
| Tack Ang | * 87.18 ° |
| Diag (clew/head) | 27.5 ft - (8382 mm) |
| Head (inches) | 4.5 in |
| Area (no Roach) | * 138.39 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 8.5 ft - (2591 mm) |
| Leech | 21.25 ft - (6477 mm) |
| Percentage LP | * 104.67 % |
| Length Perpendicular | * 7.85 ft - (2393 mm) |
| Deck Angle | * 5.49 ° |
| Area | * 90.3 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 8.83 ft - (2691 mm) |
| Leech | 20 ft - (6096 mm) |
| Percentage LP | * 107.07 % |
| Length Perpendicular | * 8.03 ft - (2448 mm) |
| Deck Angle | * 7.62 ° |
| Area | * 88.29 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 24.34 ft - (7419 mm) |
| Foot | * 12.05 ft - (3673 mm) |
| Leech | * 22.97 ft - (7001 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.25 ft - (3429 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 136.93 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 24.34 ft - (7419 mm) |
| Foot | * 12.38 ft - (3773 mm) |
| Leech | * 22.39 ft - (6824 mm) |
| Perc LP | * 165 % |
| Area | * 226 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 24.35 ft - (7422 mm) |
| MidGirth | 13.5 ft - (4115 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Perc LP | * 180 % |
| Area | * 279 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
