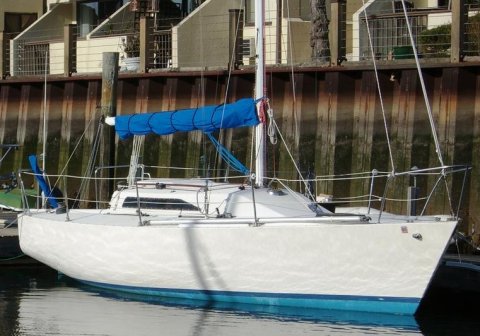

Rodgers 26
Description
The RODGERS 26 is a compact cruiser designed by O. H. Rodgers. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | O. H. Rodgers |
|---|---|
| Length | 26.000 ft |
| LOA | 26.000 ft |
| LWL | 21.000 ft |
| Beam | 9.580 ft |
| Displacement | 5650 lb |
| Max Draft | 4.750 ft |
The standard boat dimensions
| i | 35 ft |
|---|---|
| j | 11 ft |
| p | 29 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 35 ft | 11 ft | 29 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29 ft - (8839 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 30.22 ft - (9211 mm) |
| Tack Ang | * 87.98 ° |
| Diag (clew/head) | * 30.34 ft - (9248 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | 144.83 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.35 ft - (8946 mm) |
| Foot | * 14.53 ft - (4429 mm) |
| Leech | * 25.56 ft - (7791 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 12 ° |
| Area | 185.69 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 34.85 ft - (10622 mm) |
| Foot | * 17.73 ft - (5404 mm) |
| Leech | * 32.82 ft - (10004 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.5 ft - (5029 mm) |
| Deck Angle | * 4 ° |
| Area | 287.57 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 34.85 ft - (10622 mm) |
| MidGirth | * 19.8 ft - (6035 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Perc LP | * 180 % |
| Area | 586.53 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
