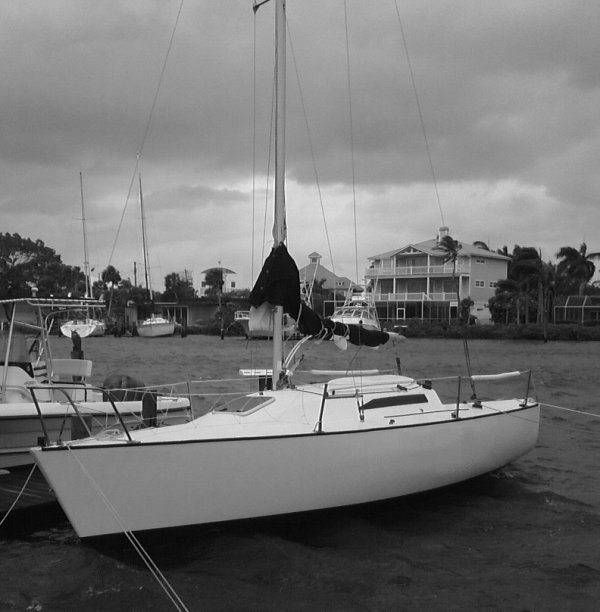

Rodgers 24
Description
The RODGERS 24 is a small sailboat designed by O. H. Rodgers. With her light displacement hull, she offers spirited performance, featuring variable draft for versatility in different sailing conditions. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | O. H. Rodgers |
|---|---|
| Length | 24.000 ft |
| LOA | 24.000 ft |
| LWL | 20.500 ft |
| Beam | 8.200 ft |
| Displacement | 2200 lb |
| Max Draft | 5.500 ft |
| Min Draft | 1.500 ft |
The standard boat dimensions
| i | 26 ft |
|---|---|
| j | 8.50 ft |
| p | 27 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26 ft | 8.50 ft | 27 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27 ft - (8230 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 28.55 ft - (8702 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 28.8 ft - (8778 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 153.56 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.5 ft - (7468 mm) |
| Foot | 10.25 ft - (3124 mm) |
| Leech | 22.33 ft - (6806 mm) |
| Percentage LP | * 109.88 % |
| Length Perpendicular | * 9.34 ft - (2847 mm) |
| Deck Angle | * 6.2 ° |
| Area | * 114.44 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 21.88 ft - (6669 mm) |
| Foot | * 11.31 ft - (3447 mm) |
| Leech | * 18.92 ft - (5767 mm) |
| Percentage LP | * 115.06 % |
| Length Perpendicular | * 9.78 ft - (2981 mm) |
| Deck Angle | * 12.06 ° |
| Area | * 106.98 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 25.99 ft - (7922 mm) |
| Foot | * 13.76 ft - (4194 mm) |
| Leech | * 24.41 ft - (7440 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12.75 ft - (3886 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 165.69 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 25.99 ft - (7922 mm) |
| Foot | * 14.02 ft - (4273 mm) |
| Leech | * 23.91 ft - (7288 mm) |
| Perc LP | * 165 % |
| Area | * 273 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 25.99 ft - (7922 mm) |
| MidGirth | * 15.3 ft - (4663 mm) |
| Foot | * 15.3 ft - (4663 mm) |
| Perc LP | * 180 % |
| Area | * 338 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
