Rival 34
Description

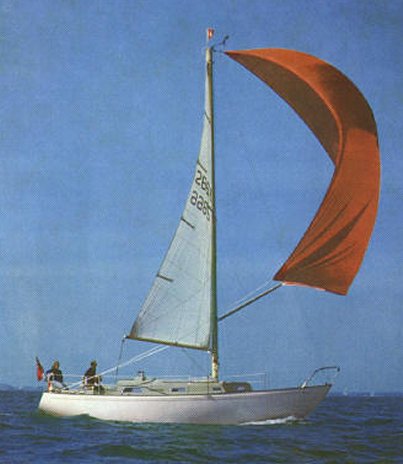

The Rival 34 is a classic British bluewater cruising sailboat, renowned for its seaworthiness, solid build, and proven ocean-crossing credentials. It was designed by Peter Brett in the early 1970s as an evolution of the successful Rival 32. Built by Southern Boatbuilding (later Southern Shipbuilding) in Southampton, UK (with some earlier hulls by Marcon), around 174 units were produced from about 1972 into the late 1980s. Many have completed long-distance voyages, including notable achievements like the designer's own boat "Wild Rival" winning the 1976 OSTAR singlehanded transatlantic race.
Construction Details
| Designer | Peter Brett |
|---|---|
| Builder | Southern Boat Building / Bowman Yachts in the UK |
| Length | 34.000 ft |
| LOA | 34.000 ft |
| LWL | 24.667 ft |
| Beam | 9.670 ft |
| Displacement | 11900 lb |
| Ballast | 4700 lb |
| Max Draft | 4.670 ft |
| Year Built | 1972 |
The standard boat dimensions
| i | 37.72 ft |
|---|---|
| j | 12.58 ft |
| p | 32.67 ft |
| e | 11.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 37.72 ft | 12.58 ft | 32.67 ft | 11.25 ft | - | - | - | - |
Documents
Sails
Rival 34 - MAINSAIL
| Luff | 32.67 ft - (9958 mm) |
|---|---|
| Foot | 11.25 ft - (3429 mm) |
| Leech | * 33.94 ft - (10345 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 34.18 ft - (10418 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 189.89 ft² |
| Edit in Calculator |
Rival 34 - JIBSAIL
| Luff | * 31.81 ft - (9696 mm) |
|---|---|
| Foot | * 16.79 ft - (5118 mm) |
| Leech | * 27.42 ft - (8358 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 14.47 ft - (4410 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 230.13 ft² |
| Edit in Calculator |
Rival 34 - GENOA
| Luff | 37.25 ft - (11354 mm) |
|---|---|
| Foot | 17.75 ft - (5410 mm) |
| Leech | 35 ft - (10668 mm) |
| Percentage LP | * 131.56 % |
| Length Perpendicular | * 16.55 ft - (5044 mm) |
| Deck Angle | * 2.73 ° |
| Area | * 308.28 ft² |
| Edit in Calculator |
Rival 34 - GENOA
| Luff | * 37.77 ft - (11512 mm) |
|---|---|
| Foot | * 20.42 ft - (6224 mm) |
| Leech | * 35.41 ft - (10793 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.87 ft - (5752 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 356.34 ft² |
| Edit in Calculator |
Rival 34 - DRIFTER
| Luff | * 37.77 ft - (11512 mm) |
|---|---|
| Foot | * 21.26 ft - (6480 mm) |
| Leech | * 33.75 ft - (10287 mm) |
| Perc LP | * 150 % |
| Length Perp | * 18.87 ft - (5752 mm) |
| Deck Angle | * 8.97 ° |
| Area | * 356.4 ft² |
| Edit in Calculator |
Rival 34 - ASYMMETRICAL
| Luff | * 37.77 ft - (11512 mm) |
|---|---|
| Foot | * 20.76 ft - (6328 mm) |
| Leech | * 34.75 ft - (10592 mm) |
| Perc LP | * 165 % |
| Area | * 588 ft² |
| Edit in Calculator |
Rival 34 - SPINNAKER
| Stays | * 37.77 ft - (11512 mm) |
|---|---|
| MidGirth | * 22.64 ft - (6901 mm) |
| Foot | * 22.64 ft - (6901 mm) |
| Perc LP | * 180 % |
| Area | * 727 ft² |
| Edit in Calculator |
Rival 34 - STORMJIB
| Luff | 18 ft - (5486 mm) |
|---|---|
| Foot | 9.25 ft - (2819 mm) |
| Leech | 15.5 ft - (4724 mm) |
| Perc LP | * 63.35 % |
| Length Perp | * 7.97 ft - (2429 mm) |
| Deck Angle | * 12.12 ° |
| Area | * 71.69 ft² |
| Edit in Calculator |
Rival 34 - STORMTRYSAIL
| Luff | 11.67 ft - (3557 mm) |
|---|---|
| Foot | 9 ft - (2743 mm) |
| Leech | 16.5 ft - (5029 mm) |
| Length Perp | * 10.34 ft - (3152 mm) |
| Tack Angle | * 6.56 ° |
| Area | * 51 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
