RHODES BANTAM
Description

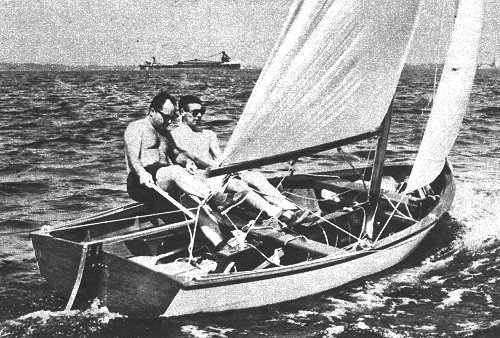

The RHODES BANTAM is a dinghy designed by Philip Rhodes. This nimble dinghy is designed for responsive sailing and easy handling, featuring variable draft for versatility in different sailing conditions. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Philip Rhodes |
|---|---|
| Length | 15.000 ft |
| LOA | 14.000 ft |
| LWL | 13.080 ft |
| Beam | 5.500 ft |
| Displacement | 325 lb |
| Max Draft | 4.170 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 17.17 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 17.17 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 17.167 ft - (5233 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech-AftHdBd | * 18.63 ft - (5678 mm) |
| Tack Ang | * 86.08 ° |
| Diag (clew/head) | 18.83 ft - (5739 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 79.57 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 15 |
| MidGirth | 11.33 ft - (3453 mm) |
| Foot | 13 ft - (3962 mm) |
| Area | * 166 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 12.56 ft - (3828 mm) |
| Foot | 7.75 ft - (2362 mm) |
| Leech | 12.35 ft - (3764 mm) |
| Length Perpendicular | * 7.3 ft - (2225 mm) |
| Area | * 45.85 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
