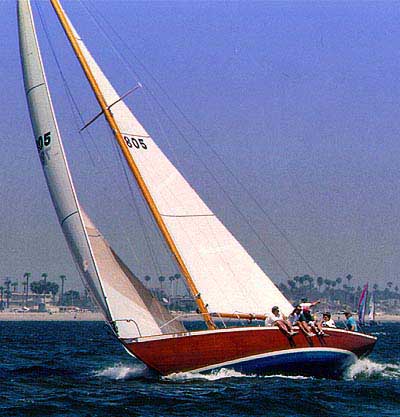

RHODES 28
Description
The RHODES 28 is a cruising yacht designed by Philip Rhodes. Built for serious cruising, she offers reassuring stability in all conditions, featuring variable draft for versatility in different sailing conditions. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Philip Rhodes |
|---|---|
| Length | 28.000 ft |
| LOA | 39.000 ft |
| LWL | 28.000 ft |
| Beam | 9.670 ft |
| Displacement | 18000 lb |
| Max Draft | 5.830 ft |
| Min Draft | 4.580 ft |
The standard boat dimensions
| i | 32.92 ft |
|---|---|
| j | 10 ft |
| p | 28.58 ft |
| e | 13.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 32.92 ft | 10 ft | 28.58 ft | 13.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 32.25 ft - (9830 mm) |
| Foot | 19 ft - (5791 mm) |
| Leech | 32.25 ft - (9830 mm) |
| Length Perpendicular | 18.16 ft - (5535 mm) |
| Area | 292.78 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 29.5 ft - (8992 mm) |
| Foot | 9.75 ft - (2972 mm) |
| Leech | 26.25 ft - (8001 mm) |
| Length Perpendicular | 8.55 ft - (2606 mm) |
| Area | 126.14 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 32.69 |
| MidGirth | * 18 ft - (5486 mm) |
| Foot | * 18 ft - (5486 mm) |
| Perc LP | * 180 |
| Area | 500.16 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 28.63 ft - (8726 mm) |
| Foot | 13.25 ft - (4039 mm) |
| Leech-AftHdBd | * 30.91 ft - (9421 mm) |
| Tack Ang | * 87.98 ° |
| Diag (clew/head) | * 31.12 ft - (9485 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 189.41 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
