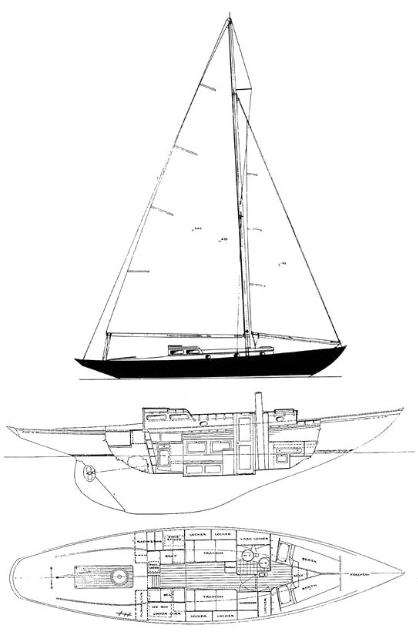

RHODES 27
Description
The RHODES 27 is a cruising yacht designed by Philip Rhodes. Built for serious cruising, she offers reassuring stability in all conditions, featuring variable draft for versatility in different sailing conditions. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Philip Rhodes |
|---|---|
| Length | 27.000 ft |
| LOA | 39.160 ft |
| LWL | 27.000 ft |
| Beam | 9.670 ft |
| Displacement | 18890 lb |
| Max Draft | 5.830 ft |
| Min Draft | 6.500 ft |
The standard boat dimensions
| i | 40.50 ft |
|---|---|
| j | 14 ft |
| p | 43.75 ft |
| e | 19.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.50 ft | 14 ft | 43.75 ft | 19.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 40.71 ft - (12408 mm) |
| Foot | * 22.83 ft - (6959 mm) |
| Leech | * 38.08 ft - (11607 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Deck Angle | * 4 ° |
| Area | 427.54 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.28 ft - (10449 mm) |
| Foot | * 18.8 ft - (5730 mm) |
| Leech | * 29.38 ft - (8955 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.1 ft - (4907 mm) |
| Deck Angle | * 12 ° |
| Area | 275.98 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.75 ft - (13335 mm) |
| Foot | * 19.5 ft - (5944 mm) |
| Leech-AftHdBd | * 47.07 ft - (14347 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 47.27 ft - (14408 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 426.11 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 40.71 |
| MidGirth | * 25.2 ft - (7681 mm) |
| Foot | * 25.2 ft - (7681 mm) |
| Perc LP | * 180 |
| Area | 872.01 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
