RHODES 18
Description

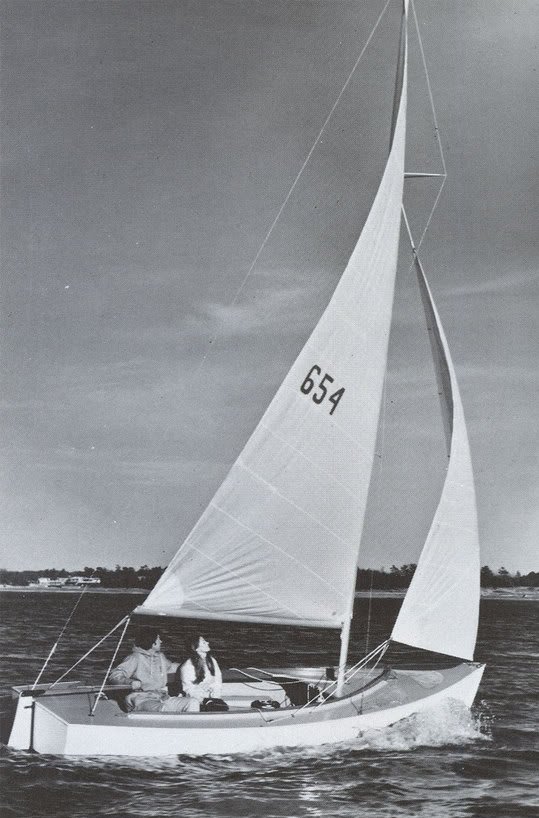

The RHODES 18 is a dinghy designed by Philip Rhodes. This nimble dinghy is designed for responsive sailing and easy handling, featuring variable draft for versatility in different sailing conditions. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Philip Rhodes |
|---|---|
| LOA | 18.000 ft |
| LWL | 17.000 ft |
| Beam | 6.250 ft |
| Displacement | 1050 lb |
| Max Draft | 4.000 ft |
| Min Draft | 0.580 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 22.33 ft |
| e | 9.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 22.33 ft | 9.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 16 ft - (4877 mm) |
| Foot | 7.25 ft - (2210 mm) |
| Leech | 14.33 ft - (4368 mm) |
| Length Perpendicular | * 6.49 ft - (1978 mm) |
| Area | * 51.94 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 18.5 |
| MidGirth | 13.5 ft - (4115 mm) |
| Foot | 14 ft - (4267 mm) |
| Area | * 220 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 23.31 ft - (7105 mm) |
| Tack Ang | * 86.98 ° |
| Diag (clew/head) | 23.5 ft - (7163 mm) |
| Head (inches) | 4 in |
| Area (no Roach) | * 107.57 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 15.5 ft - (4724 mm) |
| Foot | 10.33 ft - (3149 mm) |
| Leech | 15.083 ft - (4597 mm) |
| Length Perpendicular | * 9.58 ft - (2920 mm) |
| Area | * 74.28 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 17 ft - (5182 mm) |
| Foot | 6.292 ft - (1918 mm) |
| Leech | 15.875 ft - (4839 mm) |
| Length Perpendicular | * 5.88 ft - (1792 mm) |
| Area | * 49.94 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
