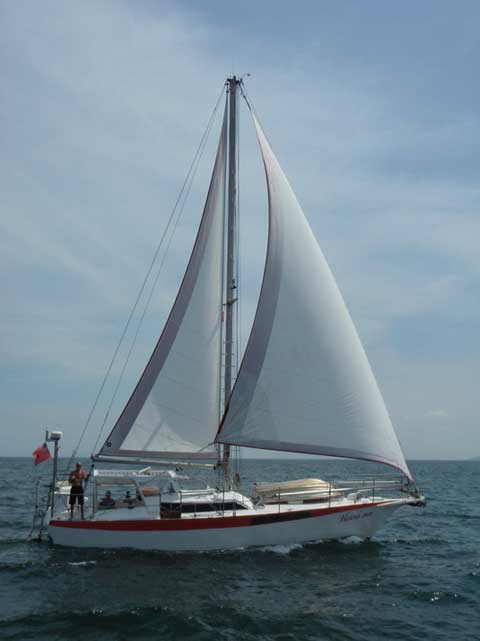

Reinke 13m
Description
The Reinke 13M is a performance cruiser designed by Kurt Reinke. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Kurt Reinke |
|---|---|
| Length | 45.000 ft |
| LOA | 44.290 ft |
| LWL | 34.780 ft |
| Beam | 12.140 ft |
| Displacement | 25794 lb |
| Max Draft | 4.430 ft |
The standard boat dimensions
| i | 52 ft |
|---|---|
| j | 24 ft |
| p | 48 ft |
| e | 14 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 52 ft | 24 ft | 48 ft | 14 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 48 ft - (14630 mm) |
| Foot | * 14 ft - (4267 mm) |
| Leech-AftHdBd | * 49.26 ft - (15014 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 49.53 ft - (15097 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 346.19 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 53 ft - (16154 mm) |
| Foot | 25.5 ft - (7772 mm) |
| Leech | 44.42 ft - (13539 mm) |
| Percentage LP | * 125.29 % |
| Length Perpendicular | * 21.3 ft - (6492 mm) |
| Deck Angle | * 14.22 ° |
| Area | * 564.45 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 53 ft - (16154 mm) |
| Foot | 25.5 ft - (7772 mm) |
| Leech | 44.42 ft - (13539 mm) |
| Percentage LP | * 88.75 % |
| Length Perpendicular | * 21.3 ft - (6492 mm) |
| Deck Angle | * 8.58 ° |
| Area | * 564.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 53 ft - (16154 mm) |
| Foot | 36.75 ft - (11201 mm) |
| Leech | 46.92 ft - (14301 mm) |
| Percentage LP | * 132.38 % |
| Length Perpendicular | * 31.77 ft - (9683 mm) |
| Deck Angle | * 5.4 ° |
| Area | * 841.9 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 54.41 ft - (16584 mm) |
| Foot | * 39.6 ft - (12070 mm) |
| Leech | * 50.06 ft - (15258 mm) |
| Perc LP | * 165 % |
| Area | * 1616 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 31.5 ft - (9601 mm) |
| Foot | * 19.94 ft - (6078 mm) |
| Leech | * 22.82 ft - (6956 mm) |
| Perc LP | * 60 % |
| Length Perp | * 14.4 ft - (4389 mm) |
| Deck Angle | * 19 ° |
| Area | * 226.76 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
