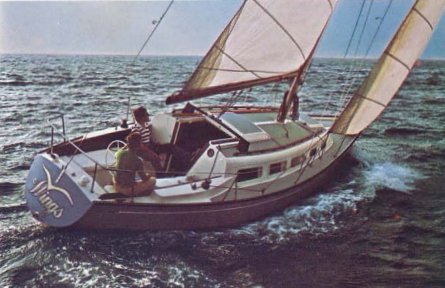

RANGER 33
Description
The RANGER 33 is a mid-sized cruiser designed by Gary Mull. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Gary Mull |
|---|---|
| Length | 33.000 ft |
| LOA | 33.170 ft |
| LWL | 26.250 ft |
| Beam | 9.580 ft |
| Displacement | 10500 lb |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | 41.50 ft |
|---|---|
| j | 13.87 ft |
| p | 35 ft |
| e | 13.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 41.50 ft | 13.87 ft | 35 ft | 13.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 41.57 ft - (12671 mm) |
| MidGirth | * 24.97 ft - (7611 mm) |
| Foot | * 24.97 ft - (7611 mm) |
| Perc LP | * 180 |
| Area | * 882 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 23 ft - (7010 mm) |
| Leech | 39.5 ft - (12040 mm) |
| Perc LP | * 165 |
| Area | * 724 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 41.5 ft - (12649 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 38 ft - (11582 mm) |
| Percentage LP | * 131.58 % |
| Length Perpendicular | * 18.25 ft - (5563 mm) |
| Deck Angle | * 5.64 ° |
| Area | * 378.78 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35 ft - (10668 mm) |
| Foot | * 13.75 ft - (4191 mm) |
| Leech-AftHdBd | * 36.87 ft - (11238 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 37.15 ft - (11323 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 248.15 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 41.57 ft - (12671 mm) |
| Foot | * 22.52 ft - (6864 mm) |
| Leech | * 38.98 ft - (11881 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 20.81 ft - (6343 mm) |
| Deck Angle | * 4 ° |
| Area | * 432.52 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.01 ft - (10671 mm) |
| Foot | * 18.51 ft - (5642 mm) |
| Leech | * 30.18 ft - (9199 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.95 ft - (4862 mm) |
| Deck Angle | * 12 ° |
| Area | * 279.23 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 40.5 ft - (12344 mm) |
| Foot | 15.75 ft - (4801 mm) |
| Leech | 36 ft - (10973 mm) |
| Percentage LP | * 100.58 % |
| Length Perpendicular | * 13.95 ft - (4252 mm) |
| Deck Angle | * 9.18 ° |
| Area | * 282.48 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
