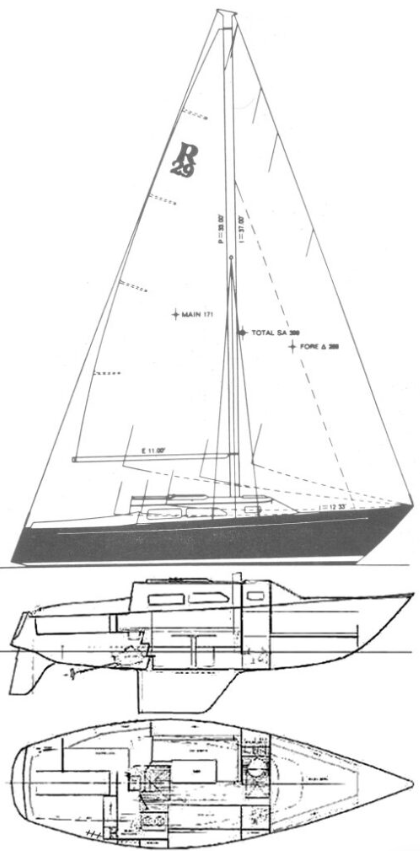

Ranger 29
Description
Designed by Gary Mull
The standard boat dimensions
| i | 37 ft |
|---|---|
| j | 12.33 ft |
| p | 33 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37 ft | 12.33 ft | 33 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 21 ft - (6401 mm) |
| Leech | 36 ft - (10973 mm) |
| Perc LP | * 165 |
| Area | * 598 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 16.75 ft - (5105 mm) |
| Leech | 33.25 ft - (10135 mm) |
| Percentage LP | * 125.06 % |
| Length Perpendicular | * 15.42 ft - (4700 mm) |
| Deck Angle | * 4.56 ° |
| Area | * 277.56 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37.25 ft - (11354 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 35 ft - (10668 mm) |
| Percentage LP | * 150.2 % |
| Length Perpendicular | * 18.52 ft - (5645 mm) |
| Deck Angle | * 3.75 ° |
| Area | * 344.93 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 18 ft - (5486 mm) |
| Leech | 33.75 ft - (10287 mm) |
| Percentage LP | * 135.52 % |
| Length Perpendicular | * 16.71 ft - (5093 mm) |
| Deck Angle | * 3.35 ° |
| Area | * 300.86 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 32 ft - (9754 mm) |
| Foot | 14.67 ft - (4471 mm) |
| Leech | 27 ft - (8230 mm) |
| Percentage LP | * 99.84 % |
| Length Perpendicular | * 12.31 ft - (3752 mm) |
| Deck Angle | * 14.49 ° |
| Area | * 197.04 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 33 ft - (10058 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 34.18 ft - (10418 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 34.42 ft - (10491 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 187.66 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 37.05 |
| MidGirth | * 22.19 ft - (6764 mm) |
| Foot | 22.19 ft - (6764 mm) |
| Perc LP | * 180 |
| Area | * 699 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 16.5 ft - (5029 mm) |
| Foot | 10.5 ft - (3200 mm) |
| Leech | 13 ft - (3962 mm) |
| Perc LP | * 67.07 |
| Length Perp | * 8.27 |
| Deck Angle | * 19.61 ° |
| Area | * 68.23 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
