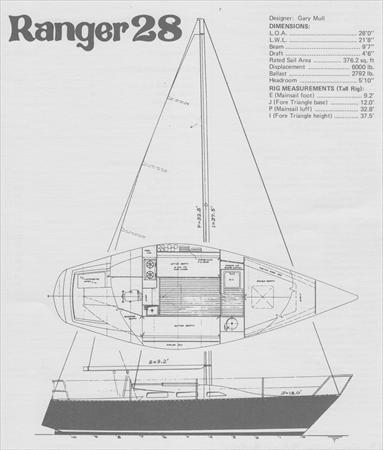

Ranger 28 Tall Rig
Description
The RANGER 28 TALL RIG is a sailboat designed by Mull, Gary. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 37.50 ft |
|---|---|
| j | 12 ft |
| p | 32.80 ft |
| e | 9.20 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37.50 ft | 12 ft | 32.80 ft | 9.20 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 37.4 ft - (11400 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Leech | * 34.41 ft - (10488 mm) |
| Perc LP | * 165 |
| Area | * 555 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 17.33 ft - (5282 mm) |
| Leech | 34.75 ft - (10592 mm) |
| Percentage LP | * 134.75 % |
| Length Perpendicular | * 16.17 ft - (4929 mm) |
| Deck Angle | * 3.36 ° |
| Area | * 299.1 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.4 ft - (11400 mm) |
| Foot | * 19.38 ft - (5907 mm) |
| Leech | * 35.17 ft - (10720 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18 ft - (5486 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 336.58 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 16.167 ft - (4928 mm) |
| Leech | 34.42 ft - (10491 mm) |
| Percentage LP | * 125 % |
| Length Perpendicular | * 15 ft - (4572 mm) |
| Deck Angle | * 4.12 ° |
| Area | * 277.57 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 36.5 ft - (11125 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 33.75 ft - (10287 mm) |
| Percentage LP | * 115.5 % |
| Length Perpendicular | * 13.86 ft - (4225 mm) |
| Deck Angle | * 4.71 ° |
| Area | * 253 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 36 ft - (10973 mm) |
| Foot | 14.5 ft - (4420 mm) |
| Leech | 33 ft - (10058 mm) |
| Percentage LP | * 110.75 % |
| Length Perpendicular | * 13.29 ft - (4051 mm) |
| Deck Angle | * 5.81 ° |
| Area | * 239.25 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.5 ft - (9601 mm) |
| Foot | * 15.89 ft - (4843 mm) |
| Leech | * 27.36 ft - (8339 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.8 ft - (4206 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 217.36 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 32.8 ft - (9997 mm) |
| Foot | * 9.2 ft - (2804 mm) |
| Leech-AftHdBd | * 33.58 ft - (10235 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 33.76 ft - (10290 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 155.51 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 37.4 |
| MidGirth | * 21.6 ft - (6584 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Perc LP | * 180 |
| Area | * 687 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
