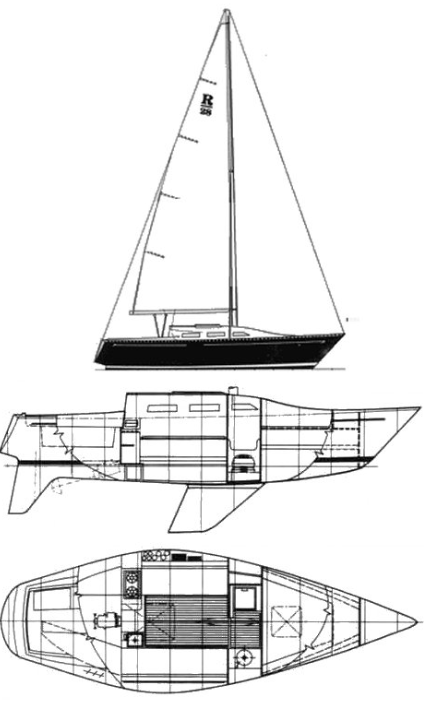

Ranger 28 Short Rig
Description
The RANGER 28 SHORT RIG is a sailboat designed by Mull, Gary. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 36 ft |
|---|---|
| j | 12 ft |
| p | 31.50 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 36 ft | 12 ft | 31.50 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 36.05 ft - (10988 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Leech | * 33.17 ft - (10110 mm) |
| Perc LP | * 165 |
| Area | * 535 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 36.05 ft - (10988 mm) |
| Foot | * 19.47 ft - (5934 mm) |
| Leech | * 33.82 ft - (10308 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18 ft - (5486 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 324.47 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 30.36 ft - (9254 mm) |
| Foot | * 16.01 ft - (4880 mm) |
| Leech | * 26.18 ft - (7980 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.8 ft - (4206 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 209.51 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 31.5 ft - (9601 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 32.76 ft - (9985 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 33 ft - (10058 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 179.15 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 36.05 |
| MidGirth | * 21.6 ft - (6584 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Perc LP | * 180 |
| Area | * 662 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
