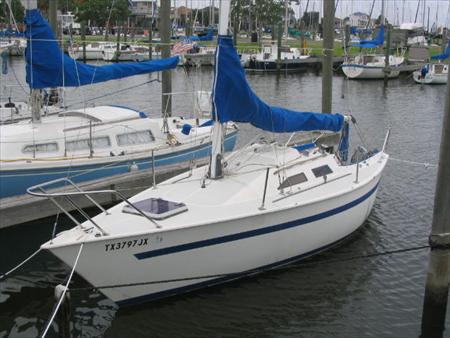

Ranger 26 -2
Description
3000 lbs displacement 1140 lbs balast 370 lbs daggerboard dwl 19'9.5" draft 4'9"
Construction Details
| Designer | Mull, Gary |
|---|---|
| Length | 25.500 ft |
| LOA | 26.250 ft |
| LWL | 21.750 ft |
| Beam | 8.670 ft |
| Displacement | 5860 lb |
| Max Draft | 4.330 ft |
| Min Draft | 1.710 ft |
The standard boat dimensions
| i | 26.40 ft |
|---|---|
| j | 8.80 ft |
| p | 30.50 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.40 ft | 8.80 ft | 30.50 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 27.5 ft - (8382 mm) |
| Foot | 15.5 ft - (4724 mm) |
| Leech | 25.75 ft - (7849 mm) |
| Perc LP | * 165 |
| Area | * 320 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 11.83 ft - (3606 mm) |
| Leech | 25 ft - (7620 mm) |
| Percentage LP | * 124.2 % |
| Length Perpendicular | * 10.93 ft - (3331 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 147.6 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 14.208 ft - (4331 mm) |
| Leech | 25.42 ft - (7748 mm) |
| Percentage LP | * 149.89 % |
| Length Perpendicular | * 13.19 ft - (4020 mm) |
| Deck Angle | * 3.35 ° |
| Area | * 178.11 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 26.17 ft - (7977 mm) |
| Foot | 9.58 ft - (2920 mm) |
| Leech | 24 ft - (7315 mm) |
| Percentage LP | * 99.77 % |
| Length Perpendicular | * 8.78 ft - (2676 mm) |
| Deck Angle | * 5.15 ° |
| Area | * 114.88 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30.5 ft - (9296 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 32.54 ft - (9918 mm) |
| Tack Ang | * 91.82 ° |
| Diag (clew/head) | 32.75 ft - (9982 mm) |
| Head (inches) | 4.5 in |
| Area (no Roach) | * 172.74 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 26.44 |
| MidGirth | * 15.84 ft - (4828 mm) |
| Foot | * 15.84 ft - (4828 mm) |
| Perc LP | * 180 |
| Area | * 356 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 13.83 ft - (4215 mm) |
| Foot | 6.42 ft - (1957 mm) |
| Leech | 11.083 ft - (3378 mm) |
| Perc LP | * 57.39 |
| Length Perp | * 5.05 |
| Deck Angle | * 19.7 ° |
| Area | * 34.92 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
