Ranger 24
Description

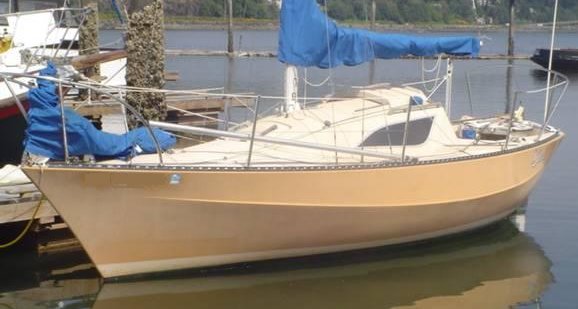

The RANGER 24 is a small sailboat designed by Raymond Richards. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Raymond Richards |
|---|---|
| Length | 24.000 ft |
| LOA | 23.920 ft |
| LWL | 20.000 ft |
| Beam | 8.330 ft |
| Displacement | 3150 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 29 ft |
|---|---|
| j | 10 ft |
| p | 25 ft |
| e | 7.60 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 29 ft | 10 ft | 25 ft | 7.60 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 25 ft - (7620 mm) |
| Foot | * 7.6 ft - (2316 mm) |
| Leech-AftHdBd | * 25.71 ft - (7836 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.87 ft - (7885 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 98.08 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 24.54 ft - (7480 mm) |
| Foot | * 13.42 ft - (4090 mm) |
| Leech | * 21.04 ft - (6413 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 11.5 ft - (3505 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 141.08 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.14 ft - (8882 mm) |
| Foot | * 16.3 ft - (4968 mm) |
| Leech | * 27.26 ft - (8309 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15 ft - (4572 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 218.55 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 29.14 ft - (8882 mm) |
| Foot | * 16.5 ft - (5029 mm) |
| Leech | * 26.81 ft - (8172 mm) |
| Perc LP | * 165 % |
| Area | * 361 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 29.14 ft - (8882 mm) |
| MidGirth | * 18 ft - (5486 mm) |
| Foot | * 18 ft - (5486 mm) |
| Perc LP | * 180 % |
| Area | * 446 ft² |
