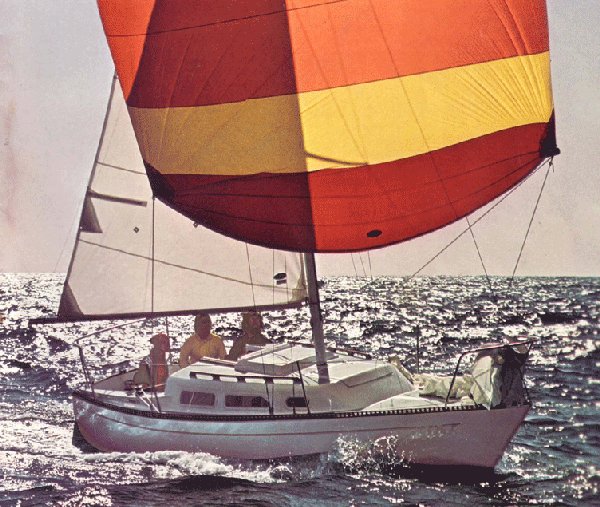

RANGER 23
Description
The RANGER 23 is a small sailboat. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 23.000 ft |
| LOA | 23.670 ft |
| LWL | 20.000 ft |
| Beam | 7.920 ft |
| Displacement | 3400 lb |
| Max Draft | 3.750 ft |
The standard boat dimensions
| i | 27.54 ft |
|---|---|
| j | 9.75 ft |
| p | 24 ft |
| e | 9.17 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 27.54 ft | 9.75 ft | 24 ft | 9.17 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 16.5 ft - (5029 mm) |
| Leech | 28 ft - (8534 mm) |
| Perc LP | * 165 |
| Area | * 371 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 29.25 ft - (8915 mm) |
| Foot | 16.33 ft - (4977 mm) |
| Leech | 26.5 ft - (8077 mm) |
| Perc LP | * 150.46 |
| Length Perp | * 14.67 |
| Deck Angle | * 7.65 ° |
| Area | * 214.51 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 24 ft - (7315 mm) |
| Foot | * 9.17 ft - (2795 mm) |
| Leech-AftHdBd | * 25.2 ft - (7681 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.39 ft - (7739 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 113.43 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 29.25 ft - (8915 mm) |
| Foot | 15.75 ft - (4801 mm) |
| Leech | 27.75 ft - (8458 mm) |
| Percentage LP | * 150.56 % |
| Length Perpendicular | * 14.68 ft - (4474 mm) |
| Deck Angle | * 1.73 ° |
| Area | * 214.72 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25.5 ft - (7772 mm) |
| Foot | 12.92 ft - (3938 mm) |
| Leech | 21.25 ft - (6477 mm) |
| Percentage LP | * 110.26 % |
| Length Perpendicular | * 10.75 ft - (3277 mm) |
| Deck Angle | * 14.21 ° |
| Area | * 137.05 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 27.75 ft - (8458 mm) |
| MidGirth | * 17.55 ft - (5349 mm) |
| Foot | * 17.55 ft - (5349 mm) |
| Perc LP | * 180 |
| Area | * 414 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
