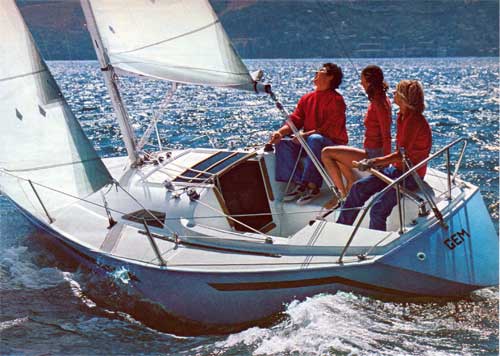

RANGER 22
Description
The RANGER 22 is a small sailboat designed by Gary Mull. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Gary Mull |
|---|---|
| Length | 22.000 ft |
| LOA | 22.500 ft |
| LWL | 17.580 ft |
| Beam | 7.830 ft |
| Displacement | 2183 lb |
| Max Draft | 4.250 ft |
The standard boat dimensions
| i | 25.75 ft |
|---|---|
| j | 8.50 ft |
| p | 26 ft |
| e | 7.42 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25.75 ft | 8.50 ft | 26 ft | 7.42 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 8.75 ft - (2667 mm) |
| Leech | 24 ft - (7315 mm) |
| Percentage LP | * 94.82 % |
| Length Perpendicular | * 8.06 ft - (2457 mm) |
| Deck Angle | * 4.57 ° |
| Area | * 104.84 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 14.91 ft - (4545 mm) |
| Foot | * 6.41 ft - (1954 mm) |
| Leech | * 12.15 ft - (3703 mm) |
| Perc LP | * 60 |
| Length Perp | * 5.1 |
| Deck Angle | * 19.01 ° |
| Area | * 38.02 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 24.5 ft - (7468 mm) |
| Foot | 11.83 ft - (3606 mm) |
| Leech | 23 ft - (7010 mm) |
| Percentage LP | * 129.65 % |
| Length Perpendicular | * 11.02 ft - (3359 mm) |
| Deck Angle | * 3.1 ° |
| Area | * 134.96 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 25.83 ft - (7873 mm) |
| Foot | 13.75 ft - (4191 mm) |
| Leech | 24.33 ft - (7416 mm) |
| Percentage LP | * 150.12 % |
| Length Perpendicular | * 12.76 ft - (3889 mm) |
| Deck Angle | * 3.58 ° |
| Area | * 164.83 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 21.69 ft - (6611 mm) |
| Foot | * 11.32 ft - (3450 mm) |
| Leech | * 18.74 ft - (5712 mm) |
| Percentage LP | * 115.06 % |
| Length Perpendicular | * 9.78 ft - (2981 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 106.05 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 25.76 ft - (7852 mm) |
| MidGirth | * 15.3 ft - (4663 mm) |
| Foot | * 15.3 ft - (4663 mm) |
| Perc LP | * 180 |
| Area | * 335 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26 ft - (7925 mm) |
| Foot | * 7.42 ft - (2262 mm) |
| Leech-AftHdBd | * 26.63 ft - (8117 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 26.79 ft - (8166 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 99.66 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
