Ranger 20
Description

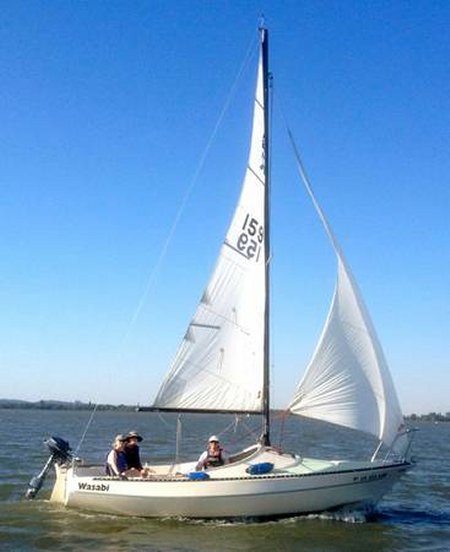

The Ranger 20 is a compact monohull sailboat designed by Raymond Richards and built by Ranger Fiberglass Boats (USA) starting in 1972. It’s a trailerable coastal cruiser and day sailor with a reputation for durability, ease of handling, and suitability for recreational sailing. Known for its solid fiberglass construction and centerboard design, it’s popular for sailing in shallow waters and small-scale racing or weekend cruising. Ranger Yachts, founded by Jack Jensen in 1970, ceased production in 1987. The company, known for building sailboats designed primarily by Gary Mull, was acquired by Bangor Punta in 1973 and later became part of Lear Siegler in 1984 when Lear Siegler bought out Bangor Punta. As part of Lear Siegler's restructuring in the late 1980s, the Ranger Yachts line was discontinued, the design contract with Gary Mull was terminated, and the division was dissolved in 1987. Additionally, Lear Siegler ordered most of the Ranger boat molds destroyed, effectively ending production.
Construction Details
| Designer | Raymond Richards |
|---|---|
| Length | 20.000 ft |
| LOA | 20.000 ft |
| LWL | 16.000 ft |
| Beam | 7.870 ft |
| Displacement | 1500 lb |
| Max Draft | 3.080 ft |
| Min Draft | 1.870 ft |
The standard boat dimensions
| i | 23.58 ft |
|---|---|
| j | 8.63 ft |
| p | 22.50 ft |
| e | 8 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 23.58 ft | 8.63 ft | 22.50 ft | 8 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| 23 | 22.5 |
| 10 | 8 |
| 24.55 | * 23.46 |
| 88 | * 88 |
| 24.76 | * 23.62 |
| 4.5 | * 3.5 |
| 118.76 | * 92.82 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21 ft - (6401 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 18.25 ft - (5563 mm) |
| Percentage LP | * 110.66 % |
| Length Perpendicular | * 9.55 ft - (2911 mm) |
| Deck Angle | * 9.6 ° |
| Area | * 100.32 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 22.75 ft - (6934 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Percentage LP | * 134.53 % |
| Length Perpendicular | * 11.61 ft - (3539 mm) |
| Deck Angle | * 6.66 ° |
| Area | * 132.04 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 13.83 ft - (4215 mm) |
| Leech | 22.167 ft - (6757 mm) |
| Percentage LP | * 149.48 % |
| Length Perpendicular | * 12.9 ft - (3932 mm) |
| Deck Angle | * 0.99 ° |
| Area | * 148.39 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 24 ft - (7315 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 22 ft - (6706 mm) |
| Perc LP | * 165 % |
| Area | * 270 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 23.85 ft - (7269 mm) |
| MidGirth | * 15.53 ft - (4734 mm) |
| Foot | * 15.53 ft - (4734 mm) |
| Perc LP | * 180 % |
| Area | * 315 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 13 ft - (3962 mm) |
| Foot | 6 ft - (1829 mm) |
| Leech | 10.25 ft - (3124 mm) |
| Perc LP | * 53.42 % |
| Length Perp | * 4.61 ft - (1405 mm) |
| Deck Angle | * 19.74 ° |
| Area | * 29.95 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
