RANGER 1 TON
Description
The RANGER 1 TON is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 37.000 ft |

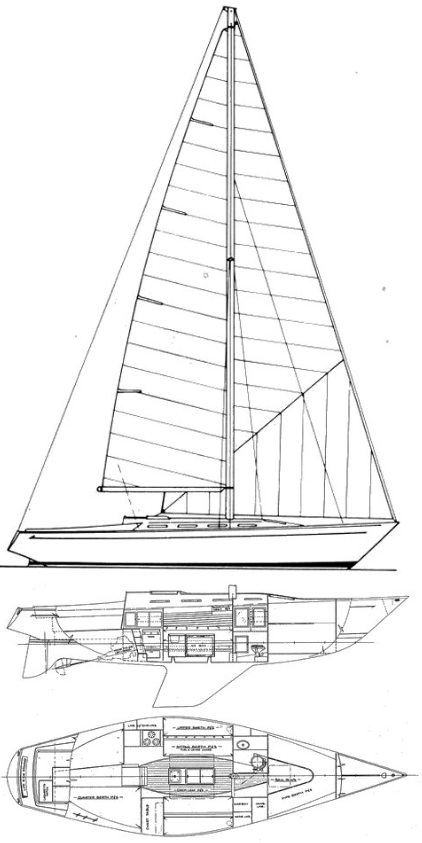

The standard boat dimensions
| i | 48.42 ft |
|---|---|
| j | 15.42 ft |
| p | 42.83 ft |
| e | 11.67 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 48.42 ft | 15.42 ft | 42.83 ft | 11.67 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 42.83 ft - (13055 mm) |
| Foot | * 11.67 ft - (3557 mm) |
| Leech-AftHdBd | * 43.88 ft - (13375 mm) |
| Tack Ang | * 87.97 ° |
| Diag (clew/head) | * 43.99 ft - (13408 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | 249.66 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 48.28 ft - (14716 mm) |
| Foot | * 24.89 ft - (7586 mm) |
| Leech | * 45.42 ft - (13844 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 23.13 ft - (7050 mm) |
| Deck Angle | * 4 ° |
| Area | 558.38 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 40.65 ft - (12390 mm) |
| Foot | * 20.41 ft - (6221 mm) |
| Leech | * 35.32 ft - (10766 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 17.73 ft - (5404 mm) |
| Deck Angle | * 12 ° |
| Area | 360.43 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 48.28 ft - (14716 mm) |
| MidGirth | * 27.76 ft - (8461 mm) |
| Foot | * 27.76 ft - (8461 mm) |
| Perc LP | * 180 |
| Area | 1139.21 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
