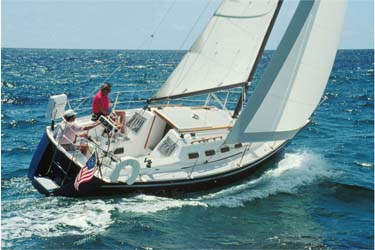

Precision 28
Description
The P-27 became the P-28 with the addition of a swim step in an extended transom. These were only boats in the Precision line that featured an inboard diesel auxiliary and optional wheel steering. This step up in specification proved to be a challenge for their dealer network at the time, so not a lot were produced, but the boats are comfortable and sailed well and are quite popular with their owners.
Construction Details
| Designer | Jim Taylor |
|---|---|
| Length | 28.000 ft |
| LOA | 28.000 ft |
| LWL | 23.000 ft |
| Beam | 10.000 ft |
| Displacement | 5500 lb |
| Max Draft | 3.670 ft |
The standard boat dimensions
| i | 30.83 ft |
|---|---|
| j | 9.83 ft |
| p | 30.67 ft |
| e | 11.92 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30.83 ft | 9.83 ft | 30.67 ft | 11.92 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30.67 ft - (9348 mm) |
| Foot | * 11.92 ft - (3633 mm) |
| Leech-AftHdBd | * 32.27 ft - (9836 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 32.51 ft - (9909 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 188.6 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25.89 ft - (7891 mm) |
| Foot | * 13.01 ft - (3965 mm) |
| Leech | * 22.49 ft - (6855 mm) |
| Percentage LP | * 114.95 % |
| Length Perpendicular | * 11.3 ft - (3444 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 146.29 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30.75 ft - (9373 mm) |
| Foot | 15.83 ft - (4825 mm) |
| Leech | 29.167 ft - (8890 mm) |
| Percentage LP | * 150.56 % |
| Length Perpendicular | * 14.8 ft - (4511 mm) |
| Deck Angle | * 3.1 ° |
| Area | * 227.55 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 30.74 ft - (9370 mm) |
| Foot | * 16.22 ft - (4944 mm) |
| Leech | * 28.28 ft - (8620 mm) |
| Perc LP | * 165 % |
| Area | * 374 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
