Precision 21
Description
The PRECISION 21 is a small sailboat designed by Jim Taylor. She strikes a balance between performance and comfort, featuring variable draft for versatility in different sailing conditions. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Jim Taylor |
|---|---|
| Length | 21.000 ft |
| LOA | 20.750 ft |
| LWL | 17.500 ft |
| Beam | 8.250 ft |
| Displacement | 1875 lb |
| Max Draft | 4.670 ft |
| Min Draft | 1.750 ft |

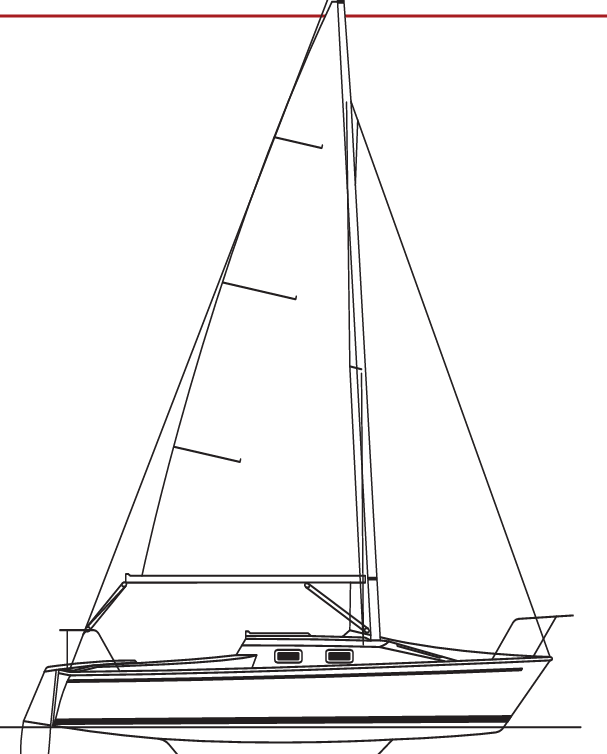

The standard boat dimensions
| i | 22.70 ft |
|---|---|
| j | 7 ft |
| p | 23.70 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 22.70 ft | 7 ft | 23.70 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23.7 ft - (7224 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech-AftHdBd | * 25.01 ft - (7623 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.22 ft - (7687 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 116.4 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22.5 ft - (6858 mm) |
| Foot | 7.83 ft - (2387 mm) |
| Leech | 20.25 ft - (6172 mm) |
| Percentage LP | * 100 % |
| Length Perpendicular | * 7 ft - (2134 mm) |
| Deck Angle | * 9.41 ° |
| Area | * 78.8 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 19 ft - (5791 mm) |
| Foot | * 9.22 ft - (2810 mm) |
| Leech | * 16.61 ft - (5063 mm) |
| Percentage LP | * 115.14 % |
| Length Perpendicular | * 8.06 ft - (2457 mm) |
| Deck Angle | * 11.91 ° |
| Area | * 76.57 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21.5 ft - (6553 mm) |
| Foot | 8.5 ft - (2591 mm) |
| Leech | 19.5 ft - (5944 mm) |
| Percentage LP | * 110.14 % |
| Length Perpendicular | * 7.71 ft - (2350 mm) |
| Deck Angle | * 7.82 ° |
| Area | * 82.84 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 22.58 ft - (6882 mm) |
| Foot | 11.25 ft - (3429 mm) |
| Leech | 21.33 ft - (6501 mm) |
| Percentage LP | * 150.14 % |
| Length Perpendicular | * 10.51 ft - (3203 mm) |
| Deck Angle | * 3.79 ° |
| Area | * 118.64 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 22.58 ft - (6882 mm) |
| Foot | 9.83 ft - (2996 mm) |
| Leech | 21 ft - (6401 mm) |
| Percentage LP | * 130.29 % |
| Length Perpendicular | * 9.12 ft - (2780 mm) |
| Deck Angle | * 4.75 ° |
| Area | * 102.98 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 21.75 ft - (6629 mm) |
| Foot | 11.25 ft - (3429 mm) |
| Leech | 20.58 ft - (6273 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 10.5 ft - (3200 mm) |
| Deck Angle | * 3.95 ° |
| Area | * 114.15 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 22.57 ft - (6879 mm) |
| Foot | * 11.7 ft - (3566 mm) |
| Leech | * 20.33 ft - (6197 mm) |
| Perc LP | * 150 % |
| Length Perp | * 10.5 ft - (3200 mm) |
| Deck Angle | * 9.04 ° |
| Area | * 118.49 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 20.75 ft - (6325 mm) |
| Perc LP | * 165 % |
| Area | * 207 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 22.57 ft - (6879 mm) |
| MidGirth | * 12.6 ft - (3840 mm) |
| Foot | * 12.6 ft - (3840 mm) |
| Perc LP | * 180 % |
| Area | * 242 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 13.07 ft - (3984 mm) |
| Foot | * 5.2 ft - (1585 mm) |
| Leech | * 10.32 ft - (3146 mm) |
| Perc LP | * 55 % |
| Length Perp | * 3.85 ft - (1173 mm) |
| Deck Angle | * 25.09 ° |
| Area | * 25.16 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
