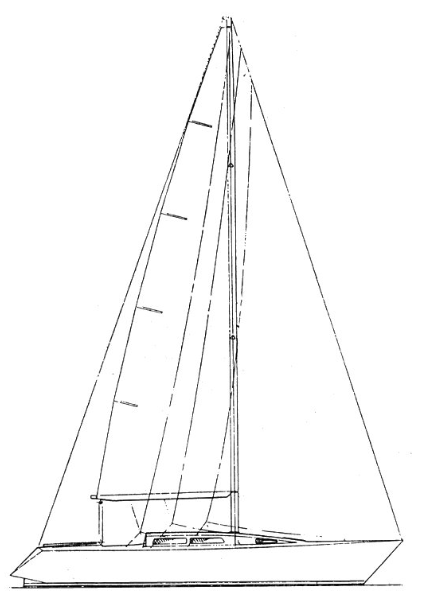

PETERSON 37
Description
The PETERSON 37 is a cruising yacht designed by Doug Peterson. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Doug Peterson |
|---|---|
| Length | 37.000 ft |
| LOA | 36.080 ft |
| LWL | 31.500 ft |
| Beam | 10.500 ft |
| Displacement | 16000 lb |
| Max Draft | 7.100 ft |
The standard boat dimensions
| i | 49 ft |
|---|---|
| j | 15.25 ft |
| p | 43.25 ft |
| e | 12.08 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 49 ft | 15.25 ft | 43.25 ft | 12.08 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 41.05 ft - (12512 mm) |
| Foot | * 20.11 ft - (6130 mm) |
| Leech | * 35.8 ft - (10912 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 17.54 ft - (5346 mm) |
| Deck Angle | * 12 ° |
| Area | 359.97 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 48.75 ft - (14859 mm) |
| MidGirth | * 27.45 ft - (8367 mm) |
| Foot | * 27.45 ft - (8367 mm) |
| Perc LP | * 180 |
| Area | 1137.46 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.25 ft - (13183 mm) |
| Foot | * 12.08 ft - (3682 mm) |
| Leech-AftHdBd | * 44.38 ft - (13527 mm) |
| Tack Ang | * 88.01 ° |
| Diag (clew/head) | * 44.5 ft - (13564 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | 260.97 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 48.75 ft - (14859 mm) |
| Foot | * 24.55 ft - (7483 mm) |
| Leech | * 45.94 ft - (14003 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 22.88 ft - (6974 mm) |
| Deck Angle | * 4 ° |
| Area | 557.6 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
