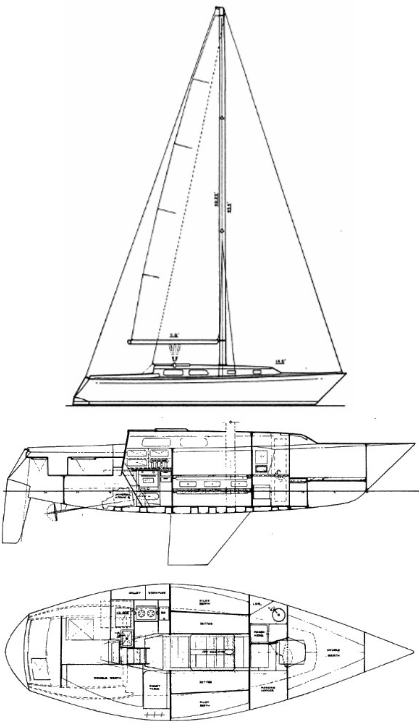

PETERSON 34 TALL SLOOP
Description
The PETERSON 34 TALL SLOOP is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 34.000 ft |
The standard boat dimensions
| i | 46.50 ft |
|---|---|
| j | 14.50 ft |
| p | 41.25 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46.50 ft | 14.50 ft | 41.25 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 46.27 ft - (14103 mm) |
| Foot | * 23.35 ft - (7117 mm) |
| Leech | * 43.59 ft - (13286 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21.75 ft - (6629 mm) |
| Deck Angle | * 4 ° |
| Area | 503.19 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 46.27 ft - (14103 mm) |
| MidGirth | * 26.1 ft - (7955 mm) |
| Foot | * 26.1 ft - (7955 mm) |
| Perc LP | * 180 |
| Area | 1026.5 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.97 ft - (11878 mm) |
| Foot | * 19.12 ft - (5828 mm) |
| Leech | * 33.98 ft - (10357 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.68 ft - (5084 mm) |
| Deck Angle | * 12 ° |
| Area | 324.85 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 41.25 ft - (12573 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 42.21 ft - (12866 mm) |
| Tack Ang | * 88.01 ° |
| Diag (clew/head) | * 42.32 ft - (12899 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | 226.64 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 46.27 ft - (14103 mm) |
| Foot | * 23.92 ft - (7291 mm) |
| Leech | * 42.57 ft - (12975 mm) |
| Perc LP | * 165 |
| Area | * 830 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 26.79 ft - (8166 mm) |
| Foot | * 10.8 ft - (3292 mm) |
| Leech | * 22.17 ft - (6757 mm) |
| Perc LP | * 60 |
| Length Perp | * 8.7 |
| Deck Angle | * 19.01 ° |
| Area | * 116.54 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 13.78 ft - (4200 mm) |
| Foot | * 12.67 ft - (3862 mm) |
| Leech | * 11.48 ft - (3499 mm) |
| Length Perp | * 11.48 |
| Tack Angle | * -25 ° |
| Area | * 68 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
