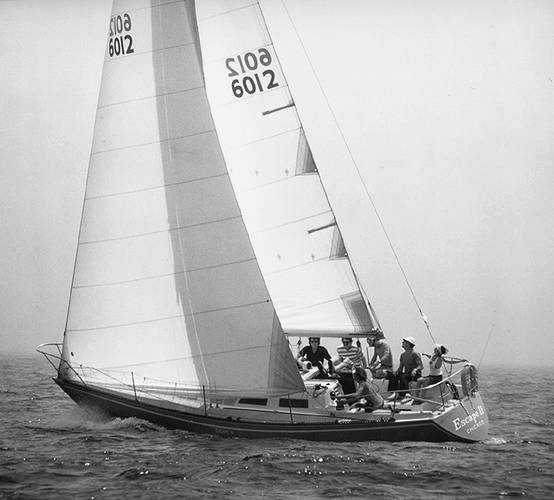

PETERSON 34
Description
The PETERSON 34 is a mid-sized cruiser designed by Doug Peterson. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Doug Peterson |
|---|---|
| Length | 34.000 ft |
| LOA | 33.920 ft |
| LWL | 28.250 ft |
| Beam | 11.250 ft |
| Displacement | 10800 lb |
| Max Draft | 6.250 ft |
The standard boat dimensions
| i | 45.50 ft |
|---|---|
| j | 14.50 ft |
| p | 40.25 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 45.50 ft | 14.50 ft | 40.25 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40.25 ft - (12268 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 41.24 ft - (12570 mm) |
| Tack Ang | * 87.98 ° |
| Diag (clew/head) | * 41.35 ft - (12603 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | 221.15 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.2 ft - (11643 mm) |
| Foot | * 19.19 ft - (5849 mm) |
| Leech | * 33.19 ft - (10116 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.68 ft - (5084 mm) |
| Deck Angle | * 12 ° |
| Area | 318.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 45.37 ft - (13829 mm) |
| Foot | * 23.41 ft - (7135 mm) |
| Leech | * 42.68 ft - (13009 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21.75 ft - (6629 mm) |
| Deck Angle | * 4 ° |
| Area | 493.48 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 45.37 ft - (13829 mm) |
| MidGirth | * 26.1 ft - (7955 mm) |
| Foot | * 26.1 ft - (7955 mm) |
| Perc LP | * 180 |
| Area | 1006.53 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
