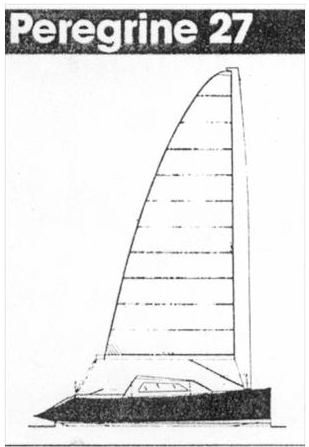

Peregrine 27
Description
An aluminum hulled catboat with a full batten main and a small wing mast. A Canadian boat.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 33 ft |
| e | 14.67 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 33 ft | 14.67 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAIN (LG ROACH) |
|---|---|
| Luff | * 33 ft - (10058 mm) |
| Foot | * 14.67 ft - (4471 mm) |
| Leech | * 35.42 ft - (10796 mm) |
| Tack Angle | * 87.99 ° |
| Diag (clew/head) | * 35.64 ft - (10863 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 249.89 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
