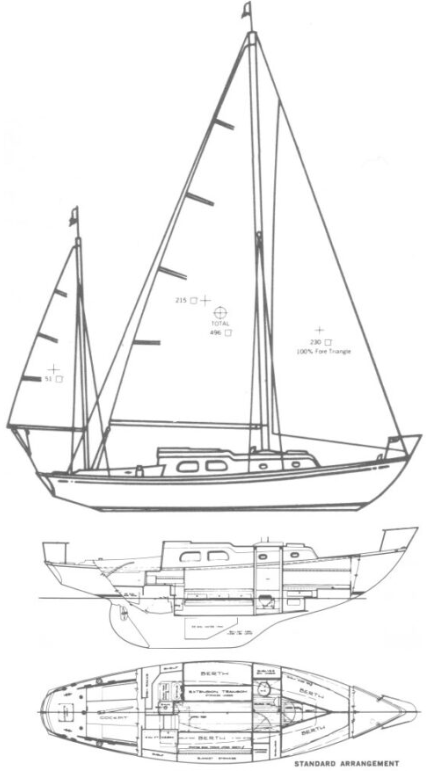

Pearson Vanguard Ketch
Description
The Pearson Vanguard Ketch is a sailboat designed by Phil Rhodes. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 37.50 ft |
|---|---|
| j | 12.25 ft |
| p | 32.50 ft |
| e | 13.25 ft |
| p2 | 15.67 ft |
| e2 | 6.50 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37.50 ft | 12.25 ft | 32.50 ft | 13.25 ft | 15.67 ft | 6.50 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 32.5 ft - (9906 mm) |
| Foot | * 13.25 ft - (4039 mm) |
| Leech-AftHdBd | * 34.39 ft - (10482 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 34.67 ft - (10567 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 222.33 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.56 ft - (9619 mm) |
| Foot | * 16.28 ft - (4962 mm) |
| Leech | * 27.32 ft - (8327 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 14.09 ft - (4295 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 222.35 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.48 ft - (11424 mm) |
| Foot | * 19.84 ft - (6047 mm) |
| Leech | * 35.19 ft - (10726 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 18.38 ft - (5602 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 344.43 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 15.67 ft - (4776 mm) |
| Foot | * 6.5 ft - (1981 mm) |
| Leech-AftHdBd | * 16.59 ft - (5057 mm) |
| Tack Ang | * 87.96 ° |
| Diag (clew/head) | * 16.75 ft - (5105 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 52.93 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
