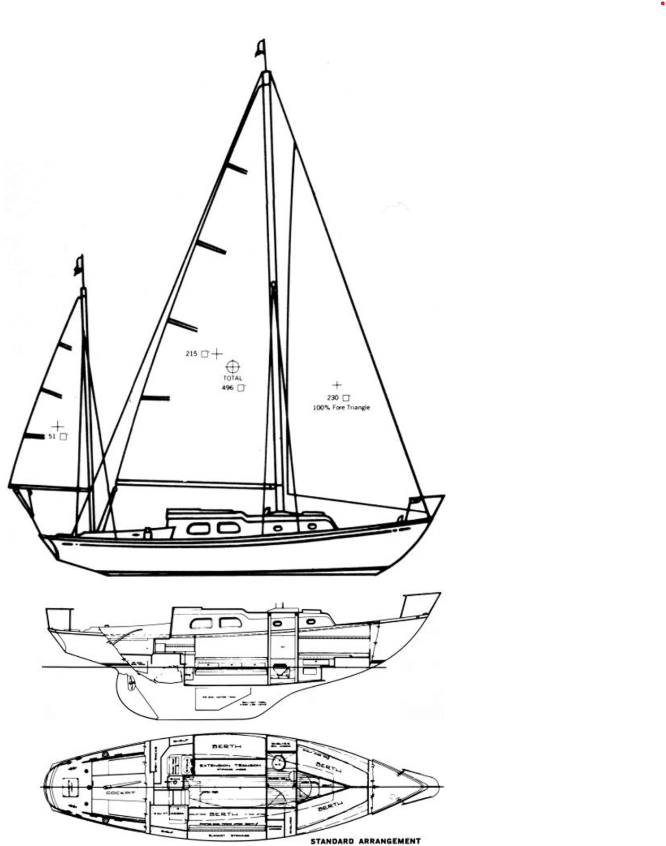

Pearson Triton masthead yawl
Description
7000 lbs
Construction Details
| Designer | Carl Alberg |
|---|---|
| Length | 28.500 ft |
The standard boat dimensions
| i | 30.25 ft |
|---|---|
| j | 9.79 ft |
| p | 31 ft |
| e | 12.62 ft |
| p2 | 15.20 ft |
| e2 | 6.20 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30.25 ft | 9.79 ft | 31 ft | 12.62 ft | 15.20 ft | 6.20 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MIZZEN |
|---|---|
| Luff | * 15.2 ft - (4633 mm) |
| Foot | * 6.2 ft - (1890 mm) |
| Leech-AftHdBd | * 16.04 ft - (4889 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 16.21 ft - (4941 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 49 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | 33 ft - (10058 mm) |
| MidGirth | 16.25 ft - (4953 mm) |
| Foot | 16.75 ft - (5105 mm) |
| Perc LP | * 180 |
| Area | * 470 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 30.21 ft - (9208 mm) |
| Foot | * 16.15 ft - (4923 mm) |
| Leech | * 27.79 ft - (8470 mm) |
| Perc LP | * 165 |
| Area | * 366 ft² |
| Sail Type | STAYSAIL |
|---|---|
| Luff | 25.75 ft - (7849 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 18.33 ft - (5587 mm) |
| Percentage LP | * 228.55 % |
| Length Perpendicular | * 14.17 ft - (4319 mm) |
| Deck Angle | * 22.71 ° |
| Area | * 182.39 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 31 ft - (9449 mm) |
| Foot | * 12.62 ft - (3847 mm) |
| Leech-AftHdBd | * 32.78 ft - (9991 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 33.06 ft - (10077 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 202.31 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
