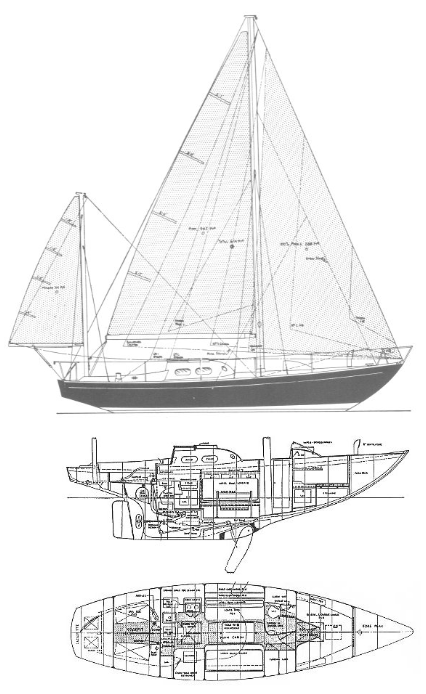

Pearson Invicta (Yawl Rig)
Description
LWL 25 Beam 10.7 Disp 19000 Draft 4.5/7.7 Produced from 1961 to 1969
The standard boat dimensions
| i | 38.50 ft |
|---|---|
| j | 15.20 ft |
| p | 33 ft |
| e | 16.10 ft |
| p2 | 16 ft |
| e2 | 8.20 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 38.50 ft | 15.20 ft | 33 ft | 16.10 ft | 16 ft | 8.20 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| 23 | * 33 |
| 10 | * 16.1 |
| 24.55 | * 35.92 |
| 88 | * 88 |
| 24.76 | * 36.21 |
| 4.5 | * 6 |
| 118.76 | * 272.83 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.11 ft - (10092 mm) |
| Foot | * 20.97 ft - (6392 mm) |
| Leech | * 27.73 ft - (8452 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 17.48 ft - (5328 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 289.39 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.32 ft - (11985 mm) |
| Foot | * 25.27 ft - (7702 mm) |
| Leech | * 36.44 ft - (11107 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 22.8 ft - (6949 mm) |
| Deck Angle | * 4 ° |
| Area | * 448.26 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 16 ft - (4877 mm) |
| Foot | * 8.2 ft - (2499 mm) |
| Leech-AftHdBd | * 17.68 ft - (5389 mm) |
| Tack Ang | * 87.98 ° |
| Diag (clew/head) | * 17.72 ft - (5401 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 68.12 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
