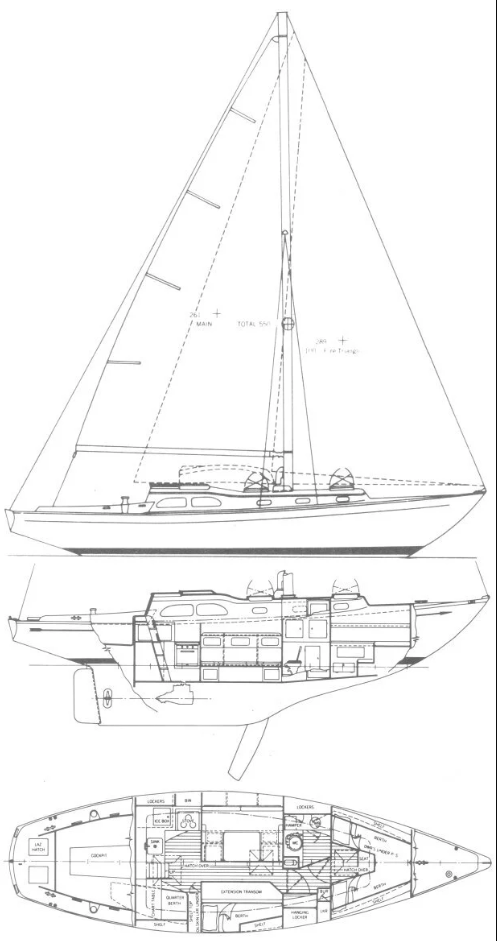

Pearson Invicta Ii (Sloop Rig)
Description
The Pearson Invicta II (sloop rig) is a sailboat designed by Bill Tripp. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 40.83 ft |
|---|---|
| j | 15.13 ft |
| p | 35.67 ft |
| e | 16.58 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 40.83 ft | 15.13 ft | 35.67 ft | 16.58 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 35.67 ft - (10872 mm) |
| Foot | 16.58 ft - (5054 mm) |
| Leech | * 38.52 ft - (11741 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 38.81 ft - (11829 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 303.4 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 37 ft - (11278 mm) |
| Foot | 16.17 ft - (4929 mm) |
| Leech | 32.67 ft - (9958 mm) |
| Area | * 263.95 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 40.67 ft - (12396 mm) |
| Foot | 27.33 ft - (8330 mm) |
| Leech | 40.33 ft - (12293 mm) |
| Area | * 520.94 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 41.37 ft - (12610 mm) |
| MidGirth | * 27.23 ft - (8300 mm) |
| Foot | * 27.23 ft - (8300 mm) |
| Perc LP | * 180 % |
| Area | * 958 ft² |
