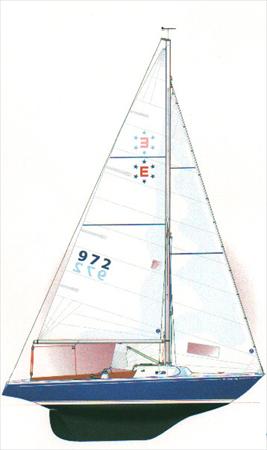

PEARSON ENSIGN
Description
First Year 1962 Last Year 1985 LWL 16.8 Beam 7.0 Disp 3,000 Draft 3. # Built 1776 Ballast 1,200
Construction Details
| Designer | Carl Alberg |
|---|---|
| Length | 22.500 ft |
The standard boat dimensions
| i | 25 ft |
|---|---|
| j | 7.50 ft |
| p | 25.42 ft |
| e | 11.13 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25 ft | 7.50 ft | 25.42 ft | 11.13 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 20.25 ft - (6172 mm) |
| Foot | 7.17 ft - (2185 mm) |
| Leech | 17.25 ft - (5258 mm) |
| Percentage LP | * 78.93 % |
| Length Perpendicular | * 5.92 ft - (1804 mm) |
| Deck Angle | * 17.67 ° |
| Area | * 59.93 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | 25 ft - (7620 mm) |
| MidGirth | 15 ft - (4572 mm) |
| Foot | 15 ft - (4572 mm) |
| Perc LP | * 180 |
| Area | * 319 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 25.42 ft - (7748 mm) |
| Foot | 11.125 ft - (3391 mm) |
| Leech-AftHdBd | * 27.14 ft - (8272 mm) |
| Tack Ang | * 87.67 ° |
| Diag (clew/head) | 27.33 ft - (8330 mm) |
| Head (inches) | 4 in |
| Area (no Roach) | * 145.01 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23.75 ft - (7239 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Leech | 23 ft - (7010 mm) |
| Percentage LP | * 169.33 % |
| Length Perpendicular | * 12.7 ft - (3871 mm) |
| Deck Angle | * 3.11 ° |
| Area | * 150.83 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.42 ft - (7443 mm) |
| Foot | 7.25 ft - (2210 mm) |
| Leech | 22.67 ft - (6910 mm) |
| Percentage LP | * 89.33 % |
| Length Perpendicular | * 6.7 ft - (2042 mm) |
| Deck Angle | * 5.71 ° |
| Area | * 81.84 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 20.25 ft - (6172 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 19.167 ft - (5842 mm) |
| Percentage LP | * 147.73 % |
| Length Perpendicular | * 11.08 ft - (3377 mm) |
| Deck Angle | * 5.89 ° |
| Area | * 112.18 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23.25 ft - (7087 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 22.167 ft - (6757 mm) |
| Percentage LP | * 150.13 % |
| Length Perpendicular | * 11.26 ft - (3432 mm) |
| Deck Angle | * 3.56 ° |
| Area | * 130.87 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23.5 ft - (7163 mm) |
| Foot | 10.75 ft - (3277 mm) |
| Leech | 22.33 ft - (6806 mm) |
| Percentage LP | * 135.07 % |
| Length Perpendicular | * 10.13 ft - (3088 mm) |
| Deck Angle | * 2.86 ° |
| Area | * 119.02 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 8.083 ft - (2464 mm) |
| Leech | 21 ft - (6401 mm) |
| Percentage LP | * 98.13 % |
| Length Perpendicular | * 7.36 ft - (2243 mm) |
| Deck Angle | * 7.66 ° |
| Area | * 84.68 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23.75 ft - (7239 mm) |
| Foot | 11.78 ft - (3591 mm) |
| Leech | 22.58 ft - (6882 mm) |
| Percentage LP | * 147.47 % |
| Length Perpendicular | * 11.06 ft - (3371 mm) |
| Deck Angle | * 3.47 ° |
| Area | * 131.31 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 22.5 ft - (6858 mm) |
| Percentage LP | * 164.13 % |
| Length Perpendicular | * 12.31 ft - (3752 mm) |
| Deck Angle | * 2 ° |
| Area | * 141.61 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 8.5 ft - (2591 mm) |
| Leech | 20.33 ft - (6197 mm) |
| Percentage LP | * 104.67 % |
| Length Perpendicular | * 7.85 ft - (2393 mm) |
| Deck Angle | * 5.77 ° |
| Area | * 86.4 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 23.25 ft - (7087 mm) |
| Foot | 9.5 ft - (2896 mm) |
| Leech | 21.25 ft - (6477 mm) |
| Percentage LP | * 115.73 % |
| Length Perpendicular | * 8.68 ft - (2646 mm) |
| Deck Angle | * 7.24 ° |
| Area | * 100.94 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23.75 ft - (7239 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 22.5 ft - (6858 mm) |
| Percentage LP | * 149.6 % |
| Length Perpendicular | * 11.22 ft - (3420 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 133.27 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 12.5 ft - (3810 mm) |
| Foot | 6 ft - (1829 mm) |
| Leech | 10.5 ft - (3200 mm) |
| Perc LP | * 66.93 |
| Length Perp | * 5.02 |
| Deck Angle | * 16.44 ° |
| Area | * 31.4 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23.5 ft - (7163 mm) |
| Foot | 10.33 ft - (3149 mm) |
| Leech | 22.25 ft - (6782 mm) |
| Percentage LP | * 129.6 % |
| Length Perpendicular | * 9.72 ft - (2963 mm) |
| Deck Angle | * 3.03 ° |
| Area | * 114.25 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
