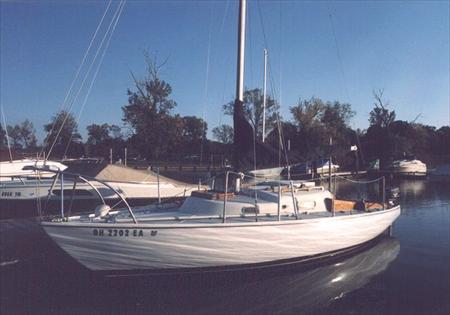

Pearson Electra
Description
First Year 1960 Last Year LWL 16.8 Beam 7.0 Disp 3,000 Draft 3.0
Construction Details
| Designer | Carl Alberg |
|---|---|
| Length | 22.500 ft |
| Notes | corrected the rig dimensions to match the sailplan-jf 9/11/25 |
The standard boat dimensions
| i | 26.50 ft |
|---|---|
| j | 8.50 ft |
| p | 23 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.50 ft | 8.50 ft | 23 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 24.55 ft - (7483 mm) |
| Tack Angle | 88 ° |
| Diagonal | 24.76 ft - (7547 mm) |
| Head (inches) | 4.5 in - (114 mm) |
| Area | 118.76 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22.26 ft - (6785 mm) |
| Foot | 11.27 ft - (3435 mm) |
| Leech | 19.32 ft - (5889 mm) |
| Percentage LP | 115.06 % |
| Length Perpendicular | 9.78 ft - (2981 mm) |
| Deck Angle | 12 ° |
| Area | 108.86 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.44 ft - (8059 mm) |
| Foot | 13.73 ft - (4185 mm) |
| Leech | 24.86 ft - (7577 mm) |
| Percentage LP | 150 % |
| Length Perpendicular | 12.75 ft - (3886 mm) |
| Deck Angle | 4.01 ° |
| Area | 168.54 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 26.44 ft - (8059 mm) |
| MidGirth | 15.3 ft - (4663 mm) |
| Foot | 15.3 ft - (4663 mm) |
| Perc LP | 180 % |
| Area | 344 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
