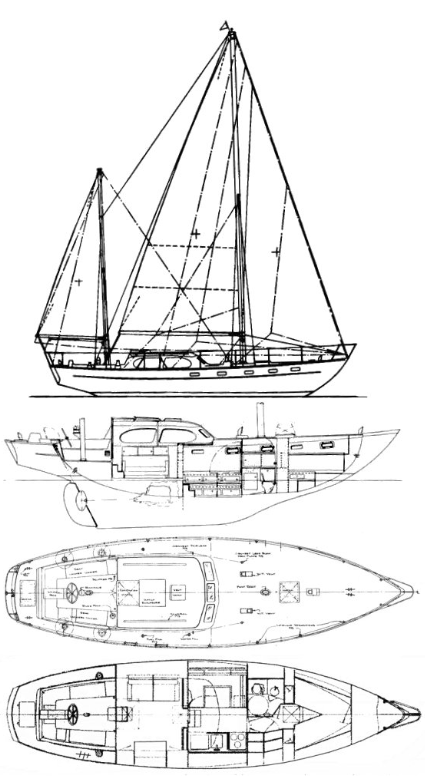

Pearson Countess (ketch rig)
Description
LWL 30.5' Beam 12.5' Disp 28000 lbs. Ballast 8000 lbs. Draft 5.3' Produced from 1965 to 1970
The standard boat dimensions
| i | 48 ft |
|---|---|
| j | 15.20 ft |
| p | 42 ft |
| e | 17.50 ft |
| p2 | 23 ft |
| e2 | 12 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 48 ft | 15.20 ft | 42 ft | 17.50 ft | 23 ft | 12 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 47.83 ft - (14579 mm) |
| Foot | * 24.52 ft - (7474 mm) |
| Leech | * 45.01 ft - (13719 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 22.8 ft - (6949 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 545.26 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 42 ft - (12802 mm) |
| Foot | * 17.5 ft - (5334 mm) |
| Leech-AftHdBd | * 44.65 ft - (13609 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 44.93 ft - (13695 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 376.55 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 40.28 ft - (12277 mm) |
| Foot | * 20.1 ft - (6126 mm) |
| Leech | * 35.03 ft - (10677 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 17.48 ft - (5328 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 352.04 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 47.83 ft - (14579 mm) |
| Foot | * 25.08 ft - (7644 mm) |
| Leech | * 44 ft - (13411 mm) |
| Perc LP | * 165 |
| Area | * 900 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 46.5 ft - (14173 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 43.75 ft - (13335 mm) |
| Percentage LP | * 135.13 % |
| Length Perpendicular | * 20.54 ft - (6261 mm) |
| Deck Angle | * 3.4 ° |
| Area | * 477.63 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 23 ft - (7010 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 25.52 ft - (7778 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.57 ft - (7794 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 143.47 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
