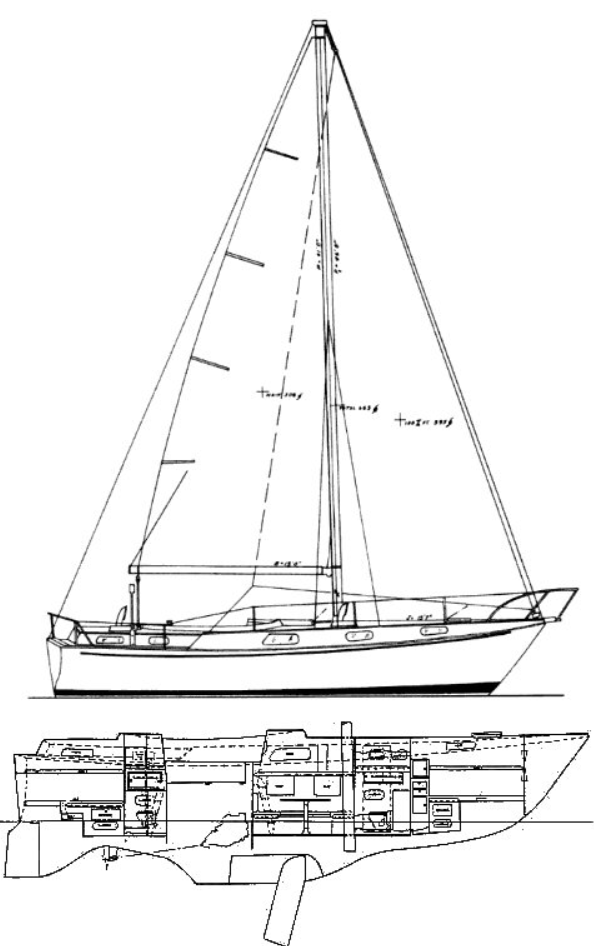

Pearson 390 (Sloop Rig)
Description
LWL 33.7 Beam 13 Disp 20600 Ballast 7600 Draft 4.3/7.6 Produced from 1972 to 1973
The standard boat dimensions
| i | 46.67 ft |
|---|---|
| j | 15.58 ft |
| p | 41 ft |
| e | 15 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46.67 ft | 15.58 ft | 41 ft | 15 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 41 ft - (12497 mm) |
| Foot | * 15 ft - (4572 mm) |
| Leech-AftHdBd | * 42.88 ft - (13070 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 43.16 ft - (13155 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 316.22 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 39.36 ft - (11997 mm) |
| Foot | * 20.79 ft - (6337 mm) |
| Leech | * 33.94 ft - (10345 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 17.92 ft - (5462 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 352.7 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 46.74 ft - (14246 mm) |
| Foot | * 25.29 ft - (7708 mm) |
| Leech | * 43.83 ft - (13359 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 23.37 ft - (7123 mm) |
| Deck Angle | * 4 ° |
| Area | * 546.2 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 46.74 ft - (14246 mm) |
| MidGirth | * 28.04 ft - (8547 mm) |
| Foot | * 28.04 ft - (8547 mm) |
| Perc LP | * 180 % |
| Area | * 1114 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
