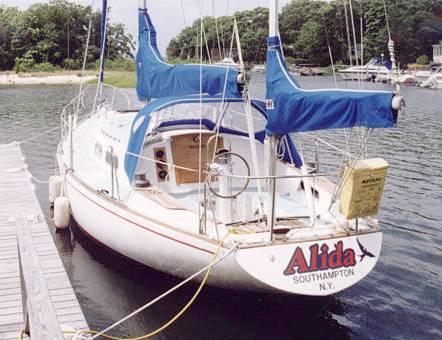

Pearson 39 (Yawl Rig)
Description
LWL 30 Beam 11.7 Disp 17000 Ballast 7300 Draft 4.6/8.9 Produced from 1970 to 1977
The standard boat dimensions
| i | 46.50 ft |
|---|---|
| j | 16.17 ft |
| p | 41 ft |
| e | 14.50 ft |
| p2 | 20 ft |
| e2 | 6.50 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 46.50 ft | 16.17 ft | 41 ft | 14.50 ft | 20 ft | 6.50 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 41 ft - (12497 mm) |
| Foot | * 14.5 ft - (4420 mm) |
| Leech-AftHdBd | * 42.73 ft - (13024 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 43.01 ft - (13109 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 305.95 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 39.39 ft - (12006 mm) |
| Foot | * 21.74 ft - (6626 mm) |
| Leech | * 33.73 ft - (10281 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 18.6 ft - (5669 mm) |
| Deck Angle | * 12 ° |
| Area | * 366.35 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 46.77 ft - (14255 mm) |
| Foot | * 26.39 ft - (8044 mm) |
| Leech | * 43.73 ft - (13329 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 24.26 ft - (7394 mm) |
| Deck Angle | * 4 ° |
| Area | * 567.32 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 45.25 ft - (13792 mm) |
| Foot | 23.75 ft - (7239 mm) |
| Leech | 42 ft - (12802 mm) |
| Percentage LP | * 135 % |
| Length Perpendicular | * 21.83 ft - (6654 mm) |
| Deck Angle | * 4.05 ° |
| Area | * 493.8 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 47 ft - (14326 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 44 ft - (13411 mm) |
| Perc LP | * 165 % |
| Area | * 952 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 20 ft - (6096 mm) |
| Foot | * 6.5 ft - (1981 mm) |
| Leech-AftHdBd | * 20.57 ft - (6270 mm) |
| Tack Ang | * 87.97 ° |
| Diag (clew/head) | * 20.81 ft - (6343 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 66.67 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
