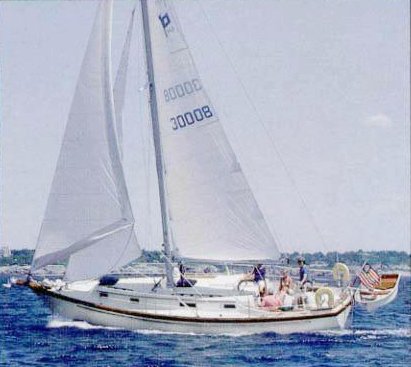

Pearson 36 Cutter
Description
LWL 30 Beam 11.5 Disp 17700 Ballast 7300 Draft 5.5 Produced from 1981 to 1982
Construction Details
| Designer | Bill Shaw |
|---|---|
| Length | 36.500 ft |
| LOA | 36.420 ft |
| LWL | 30.000 ft |
| Beam | 11.500 ft |
| Displacement | 17700 lb |
| Max Draft | 5.500 ft |
The standard boat dimensions
| i | 43 ft |
|---|---|
| j | 16.40 ft |
| p | 38 ft |
| e | 13 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43 ft | 16.40 ft | 38 ft | 13 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38 ft - (11582 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech-AftHdBd | * 39.46 ft - (12027 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 39.73 ft - (12110 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 255.18 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.82 ft - (11223 mm) |
| Foot | * 20.49 ft - (6245 mm) |
| Leech | * 34.46 ft - (10503 mm) |
| Percentage LP | * 115.06 % |
| Length Perpendicular | * 18.87 ft - (5752 mm) |
| Deck Angle | * 2.06 ° |
| Area | * 347.39 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 43.72 ft - (13326 mm) |
| Foot | * 24.96 ft - (7608 mm) |
| Leech | * 44.38 ft - (13527 mm) |
| Percentage LP | * 147.01 % |
| Length Perpendicular | * 24.11 ft - (7349 mm) |
| Deck Angle | * -5.88 ° |
| Area | * 527.04 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 43.72 ft - (13326 mm) |
| MidGirth | * 29.52 ft - (8998 mm) |
| Foot | * 29.52 ft - (8998 mm) |
| Perc LP | * 180 % |
| Area | * 1097 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
