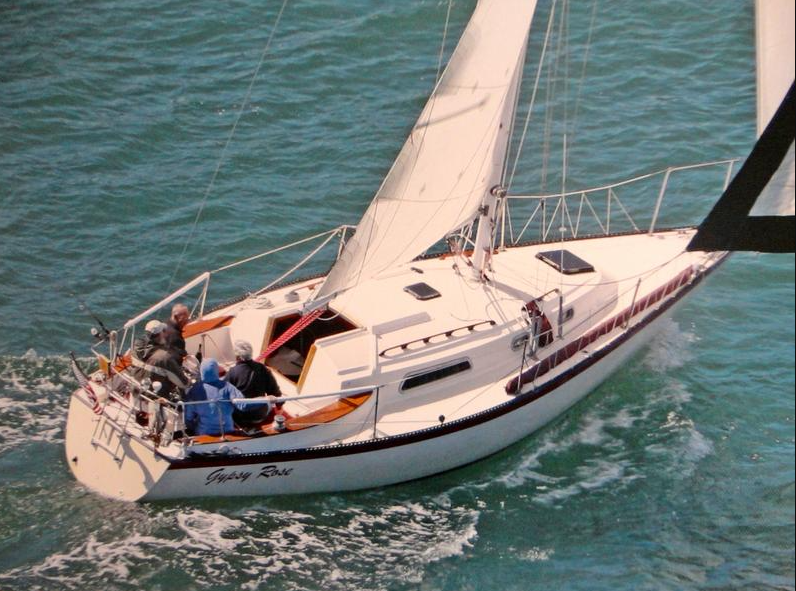

Pearson 32 Sloop
Description
displ. approx. 9400lbs.
The standard boat dimensions
| i | 40.86 ft |
|---|---|
| j | 13 ft |
| p | 35.36 ft |
| e | 11.79 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40.86 ft | 13 ft | 35.36 ft | 11.79 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35.36 ft - (10778 mm) |
| Foot | * 11.79 ft - (3594 mm) |
| Leech-AftHdBd | * 36.64 ft - (11168 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 36.88 ft - (11241 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 215.04 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35.36 ft - (10778 mm) |
| Foot | * 11.79 ft - (3594 mm) |
| Leech-AftHdBd | * 36.64 ft - (11168 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 36.88 ft - (11241 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 215.04 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.3 ft - (10455 mm) |
| Foot | * 17.2 ft - (5243 mm) |
| Leech | * 29.81 ft - (9086 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.95 ft - (4557 mm) |
| Deck Angle | * 12 ° |
| Area | * 256.36 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | 15.33 ft - (4673 mm) |
| Leech | 34.75 ft - (10592 mm) |
| Percentage LP | * 104.77 % |
| Length Perpendicular | * 13.62 ft - (4151 mm) |
| Deck Angle | * 9.65 ° |
| Area | * 265.64 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 39.75 ft - (12116 mm) |
| Foot | 18.75 ft - (5715 mm) |
| Leech | 37.5 ft - (11430 mm) |
| Percentage LP | * 135 % |
| Length Perpendicular | * 17.55 ft - (5349 mm) |
| Deck Angle | * 2.99 ° |
| Area | * 348.74 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 40.73 ft - (12415 mm) |
| Foot | * 20.98 ft - (6395 mm) |
| Leech | * 38.32 ft - (11680 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.5 ft - (5944 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 397.1 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 39.8 ft - (12131 mm) |
| Foot | * 25.31 ft - (7714 mm) |
| Leech | * 35.05 ft - (10683 mm) |
| Perc LP | * 169.23 % |
| Length Perp | 22 ft - (6706 mm) |
| Deck Angle | 12 ° |
| Area | * 437.8 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 40.73 ft - (12415 mm) |
| Foot | * 21.82 ft - (6651 mm) |
| Leech | * 36.57 ft - (11147 mm) |
| Perc LP | * 150 % |
| Length Perp | * 19.5 ft - (5944 mm) |
| Deck Angle | * 9.02 ° |
| Area | * 397.1 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 42 ft - (12802 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 39.5 ft - (12040 mm) |
| Perc LP | * 165 % |
| Area | * 693 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 40.73 ft - (12415 mm) |
| MidGirth | * 23.4 ft - (7132 mm) |
| Foot | * 23.4 ft - (7132 mm) |
| Perc LP | * 180 % |
| Area | * 810 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 23.58 ft - (7187 mm) |
| Foot | * 9.72 ft - (2963 mm) |
| Leech | * 19.42 ft - (5919 mm) |
| Perc LP | * 60 % |
| Length Perp | * 7.8 ft - (2377 mm) |
| Deck Angle | * 18.96 ° |
| Area | * 91.99 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
