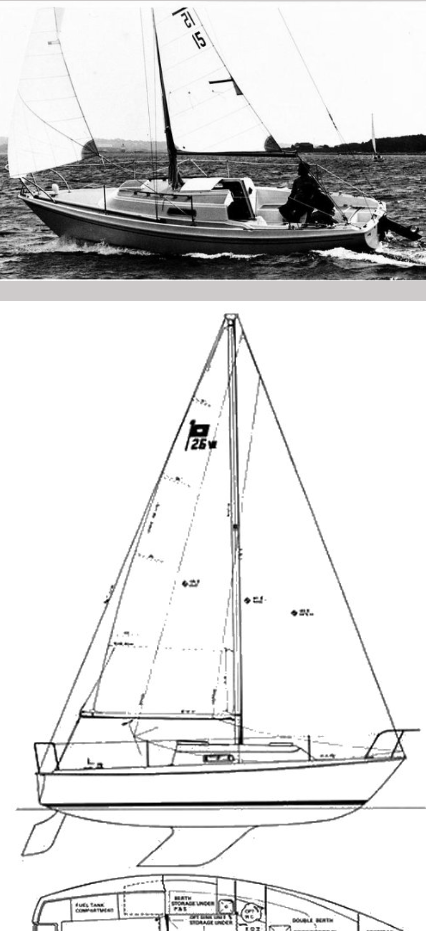

Pearson 26w
Description
The PEARSON 26W is a sailboat designed by Pearson Yachts. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 31.50 ft |
|---|---|
| j | 11.60 ft |
| p | 27.50 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 31.50 ft | 11.60 ft | 27.50 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27.5 ft - (8382 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech-AftHdBd | * 28.8 ft - (8778 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 28.93 ft - (8818 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | 137.34 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 26.85 ft - (8184 mm) |
| Foot | * 15.77 ft - (4807 mm) |
| Leech | * 22.76 ft - (6937 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.34 ft - (4066 mm) |
| Deck Angle | * 12 ° |
| Area | 179.1 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 31.89 ft - (9720 mm) |
| Foot | * 19.08 ft - (5816 mm) |
| Leech | * 29.7 ft - (9053 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.4 ft - (5304 mm) |
| Deck Angle | * 4 ° |
| Area | 277.49 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 31.89 ft - (9720 mm) |
| MidGirth | * 20.88 ft - (6364 mm) |
| Foot | * 20.88 ft - (6364 mm) |
| Perc LP | * 180 % |
| Area | 565.98 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
