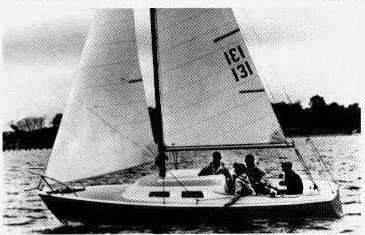

Pearson 22
Description
First Year 1968 Last Year 1972 LWL 18.5 Beam 7.8 Disp 2,600
Construction Details
| Designer | Bill Shaw |
|---|---|
| Length | 22.300 ft |
| LOA | 22.250 ft |
| LWL | 18.500 ft |
| Beam | 7.750 ft |
| Displacement | 2600 lb |
| Max Draft | 3.420 ft |
The standard boat dimensions
| i | 24.20 ft |
|---|---|
| j | 9.17 ft |
| p | 24.30 ft |
| e | 9.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 24.20 ft | 9.17 ft | 24.30 ft | 9.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 24.3 ft - (7407 mm) |
| Foot | * 9.25 ft - (2819 mm) |
| Leech-AftHdBd | * 25.51 ft - (7775 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 25.7 ft - (7833 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 115.83 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 26.06 ft - (7943 mm) |
| Foot | * 13.26 ft - (4042 mm) |
| Leech | * 22.6 ft - (6888 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 11.5 ft - (3505 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 149.83 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 30.94 ft - (9431 mm) |
| Foot | * 16.16 ft - (4926 mm) |
| Leech | * 29.09 ft - (8867 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15 ft - (4572 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 232.03 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 30.94 ft - (9431 mm) |
| MidGirth | * 18 ft - (5486 mm) |
| Foot | * 18 ft - (5486 mm) |
| Perc LP | * 180 % |
| Area | * 473 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
