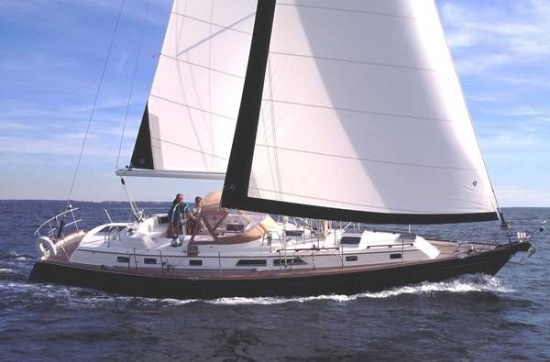

PASSPORT 44
Description
27500 lbs. Disp 10500 lbs. Ballast 36'3" LWL 14' Beam 6'10" Draft deep 5'8" Draft shoal 878 SF Sail Area
Construction Details
| Designer | Robert Perry |
|---|---|
| Length | 44.000 ft |
| LOA | 45.500 ft |
| LWL | 37.330 ft |
| Beam | 14.080 ft |
| Displacement | 25615 lb |
| Max Draft | 6.500 ft |
The standard boat dimensions
| i | 56.80 ft |
|---|---|
| j | 16 ft |
| p | 50.50 ft |
| e | 17 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 56.80 ft | 16 ft | 50.50 ft | 17 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 56.06 |
| MidGirth | * 28.8 ft - (8778 mm) |
| Foot | * 28.8 ft - (8778 mm) |
| Perc LP | * 180 |
| Area | * 1372 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 47.21 ft - (14390 mm) |
| Foot | * 20.79 ft - (6337 mm) |
| Leech | * 41.8 ft - (12741 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 18.4 ft - (5608 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 434.34 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 50.5 ft - (15392 mm) |
| Foot | * 17 ft - (5182 mm) |
| Leech-AftHdBd | * 52.45 ft - (15987 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 52.72 ft - (16069 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 440.05 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 56.06 ft - (17087 mm) |
| Foot | * 26.4 ft - (8047 mm) |
| Leech | * 51.58 ft - (15722 mm) |
| Perc LP | * 165 |
| Area | * 1110 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 56.06 ft - (17087 mm) |
| Foot | * 26.42 ft - (8053 mm) |
| Leech | * 51.01 ft - (15548 mm) |
| Perc LP | * 150 |
| Length Perp | * 24 |
| Deck Angle | * 8.99 ° |
| Area | * 672.69 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 32.46 ft - (9894 mm) |
| Foot | * 11.68 ft - (3560 mm) |
| Leech | * 27.53 ft - (8391 mm) |
| Perc LP | * 60 |
| Length Perp | * 9.6 |
| Deck Angle | * 19.01 ° |
| Area | * 155.76 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 56.06 ft - (17087 mm) |
| Foot | * 25.5 ft - (7772 mm) |
| Leech | * 53.17 ft - (16206 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24 ft - (7315 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 672.74 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
