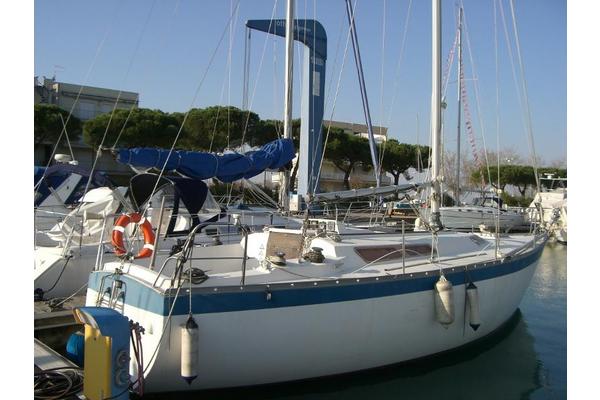

Panda 38
Description
The Panda 38 is a mid-sized cruiser designed by Gary Grant. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Gary Grant |
|---|---|
| Length | 37.580 ft |
| LOA | 31.500 ft |
| LWL | 27.400 ft |
| Beam | 10.500 ft |
| Displacement | 8378 lb |
| Max Draft | 5.410 ft |
The standard boat dimensions
| i | 45.20 ft |
|---|---|
| j | 18.50 ft |
| p | 39.50 ft |
| e | 15.20 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 45.20 ft | 18.50 ft | 39.50 ft | 15.20 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39.5 ft - (12040 mm) |
| Foot | * 15.2 ft - (4633 mm) |
| Leech | * 41.55 ft - (12664 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 41.83 ft - (12750 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 308.65 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 39.07 ft - (11909 mm) |
| Foot | * 25.75 ft - (7849 mm) |
| Leech | * 32.5 ft - (9906 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 21.28 ft - (6486 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 415.65 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 47 ft - (14326 mm) |
| Foot | 30.5 ft - (9296 mm) |
| Leech | 43 ft - (13106 mm) |
| Perc LP | * 165 % |
| Area | * 1075 ft² |
| Sail Type | STAYSAIL |
|---|
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
