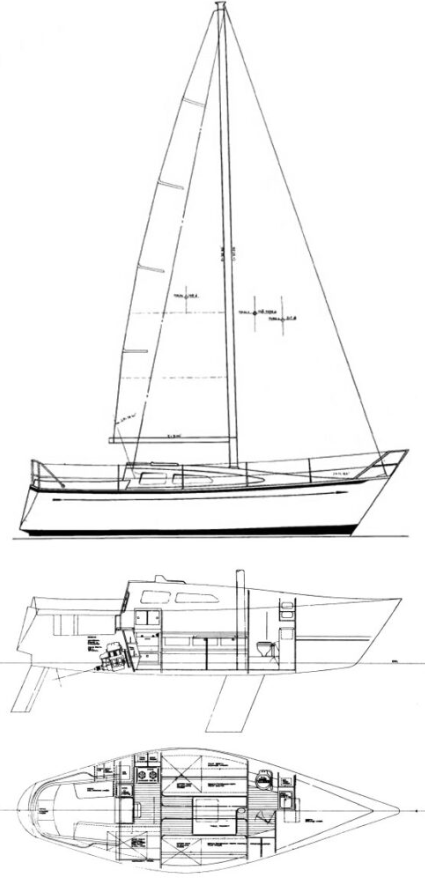

Paceship Chance 29/25
Description
LOA 28.583 LWL 25.75 Beam 9.333 Draft: Fin Keel 5.083 Displacement 7500 Ballast 2075
The standard boat dimensions
| i | 37.25 ft |
|---|---|
| j | 11.63 ft |
| p | 32.50 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 37.25 ft | 11.63 ft | 32.50 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 38 ft - (11582 mm) |
| Foot | 20 ft - (6096 mm) |
| Leech | 36 ft - (10973 mm) |
| Perc LP | * 165 |
| Area | * 570 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 37.07 ft - (11299 mm) |
| Foot | * 18.72 ft - (5706 mm) |
| Leech | * 34.93 ft - (10647 mm) |
| Percentage LP | * 149.96 % |
| Length Perpendicular | * 17.44 ft - (5316 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 323.24 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 31.22 ft - (9516 mm) |
| Foot | * 15.34 ft - (4676 mm) |
| Leech | * 27.21 ft - (8294 mm) |
| Percentage LP | * 114.96 % |
| Length Perpendicular | * 13.37 ft - (4075 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 208.7 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 32.5 ft - (9906 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 33.15 ft - (10104 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 33.42 ft - (10186 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 149.41 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 37.07 |
| MidGirth | * 20.93 ft - (6379 mm) |
| Foot | * 20.93 ft - (6379 mm) |
| Perc LP | * 180 |
| Area | * 659 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 21.46 ft - (6541 mm) |
| Foot | * 8.67 ft - (2643 mm) |
| Leech | * 17.75 ft - (5410 mm) |
| Perc LP | * 60.02 |
| Length Perp | * 6.98 |
| Deck Angle | * 19.03 ° |
| Area | * 74.91 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
